Product Description

OBDSTAR X300 Classic G3 Key Master G3 Programmer

OBDSTAR X300 Classic G3 Description:
X300 Classic G3 is the new generation intelligent tool of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for the locksmith master.
Note: Language: Enlgish Only
Please check OBDSTAR X300 Classic G3 vehicle model list

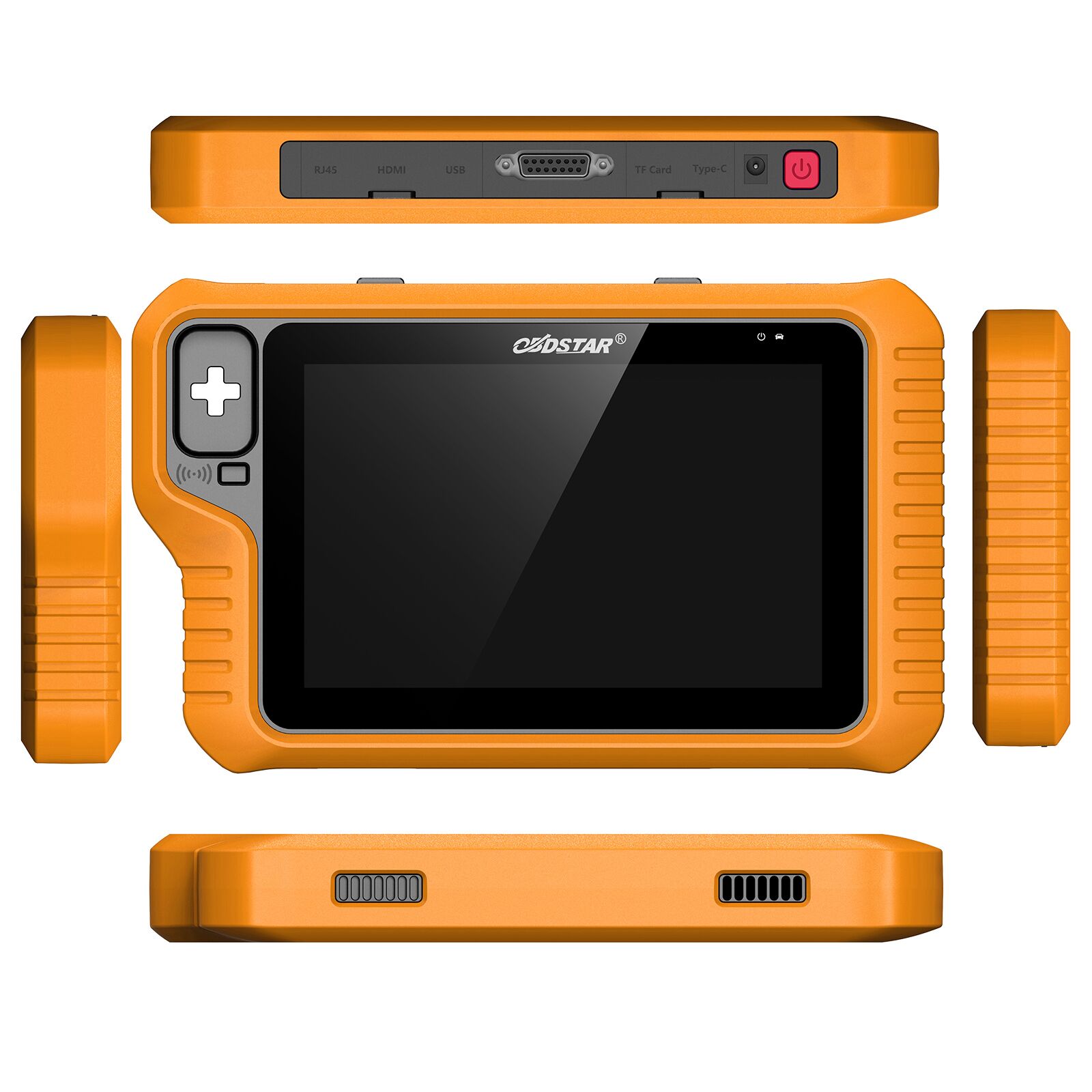

OBDSTAR X300 Classic G3 is a professional automotive key programmer designed for locksmiths and workshops.

✓ 2 Years Free Updates
✓ EU Warehouse Shipping
✓ Supports BMW / Mercedes-Benz / VW Key Programming
✓ ECU Cloning & IMMO Functions
✓ Professional Tool for Automotive Locksmiths


Who Should Buy OBDSTAR G3?

Automotive locksmiths
Car repair workshops
Vehicle electricians
Professional key programmers

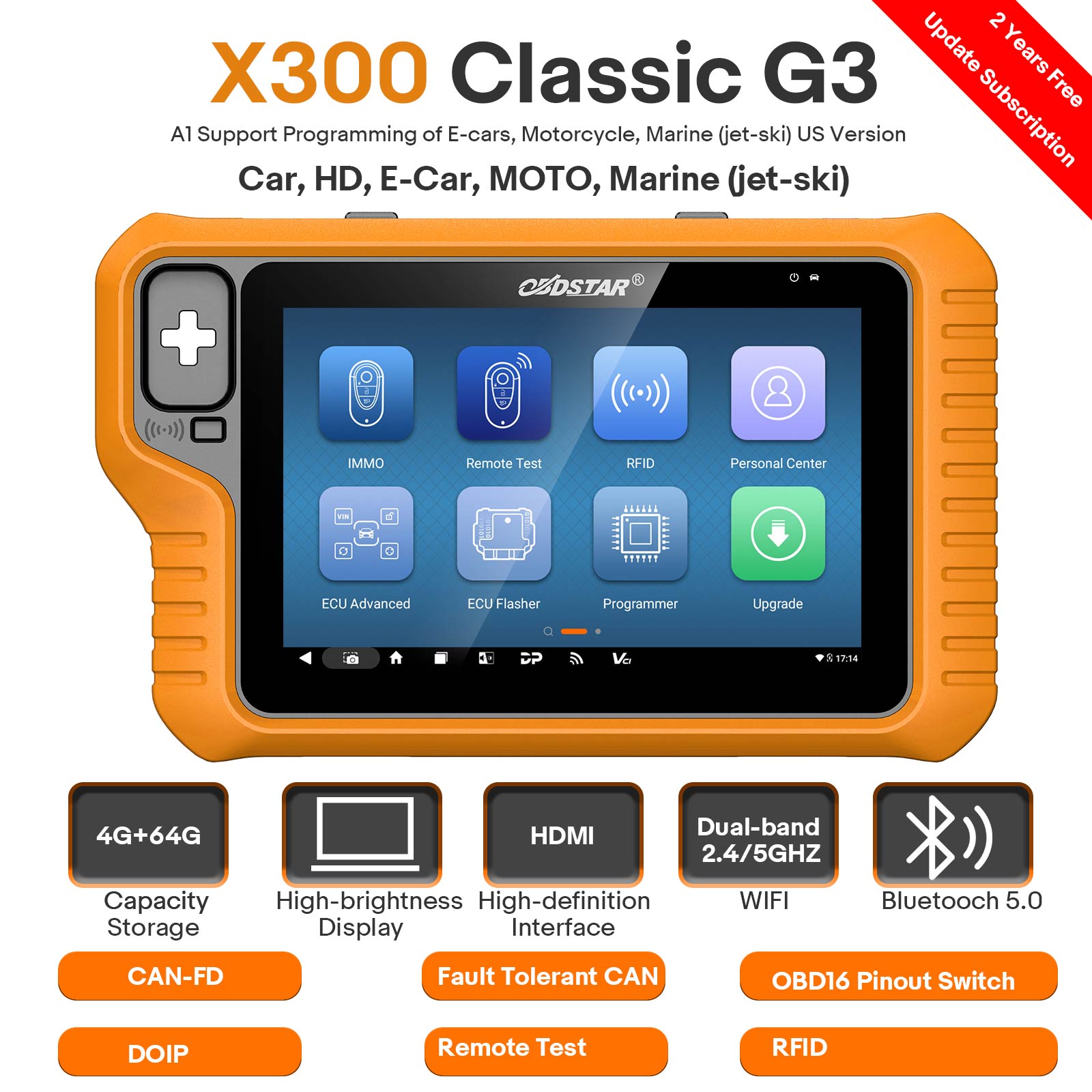

OBDSTAR Key Master G3 Highlights:
1. Latest Version (2026): Upgrade of Key Master X300 DP Plus with enhanced hardware & functions.
2. Built-in Features: CAN-FD, Low Speed (Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test, RFID.
3. PIN Extraction/BCM Cloning: First locksmith tool to support BCM PIN extraction & cloning on bench without cutting immo-boxes or dealer pins.
4. High-Performance Hardware: RK3568 Hexa-Core Processor, 4G+64G storage, high-brightness display, HDMI, dual-band Wi-Fi, Bluetooth 5.0, STM32H723 VCI.
5. OS: Android 11 for smoother operation.

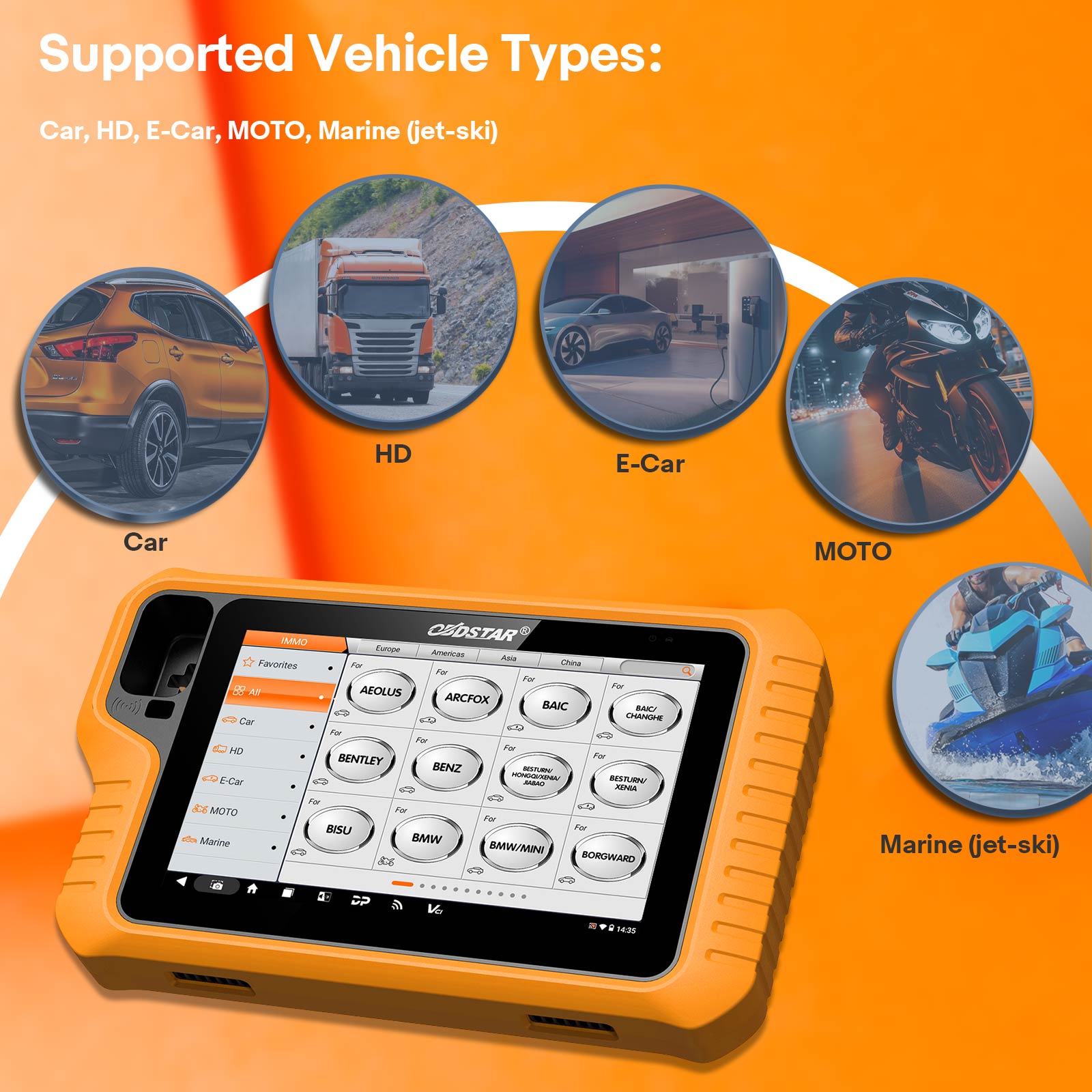

6. Supported Vehicle Types: Car, Heavy-Duty, E-Car, Motorcycle, Marine (jet-ski).
7. Adapters Included: MP001 (replaces P003/P003+), P004.
8. Free Gifts: Key SIM smart key emulator + motorcycle IMMO cable set (M034, M037, M040, M041, M042, M043, M053, M054).
9. Software & Licenses:
10. 2 years free updates; renewal fee €176 One Year after 2 years
11. Paid activation for Cluster Calibration, ECU Cloning/Flasher, Airbag Reset, and Test Platform.
12. With the ECU Cloning license, it works like DC706.
13. Buy X300 Classic G3 programming tool, get free Key Sim Kit and Motorcycle IMMO Accessories(M034, M037, M040, M041, M042, M043, M053, M054)
14. Warehouse & Shipping: Stock in EU warehouses, No Tax
15. Locked MG1/MD1 ECU

Read/Write & Unlock

Bosch MD1CP032(BMW B57)TC299
Bosch MG1CS024(BMW B48/B58)TC298
Bosch MG1CS201(BMW B48/B58)TC298
Bosch MD1CS069(FCA)TC299
Bosch MD1CP006(Ford)TC298
Bosch MD1CS089(ISUZU etc. TC299(Only for ECU MASTER C)
More Models Coming Soon...
NOTE: Requires RH850/V850 adapter kit(C4-06 adapter).
Software updates may vary by product configuration.

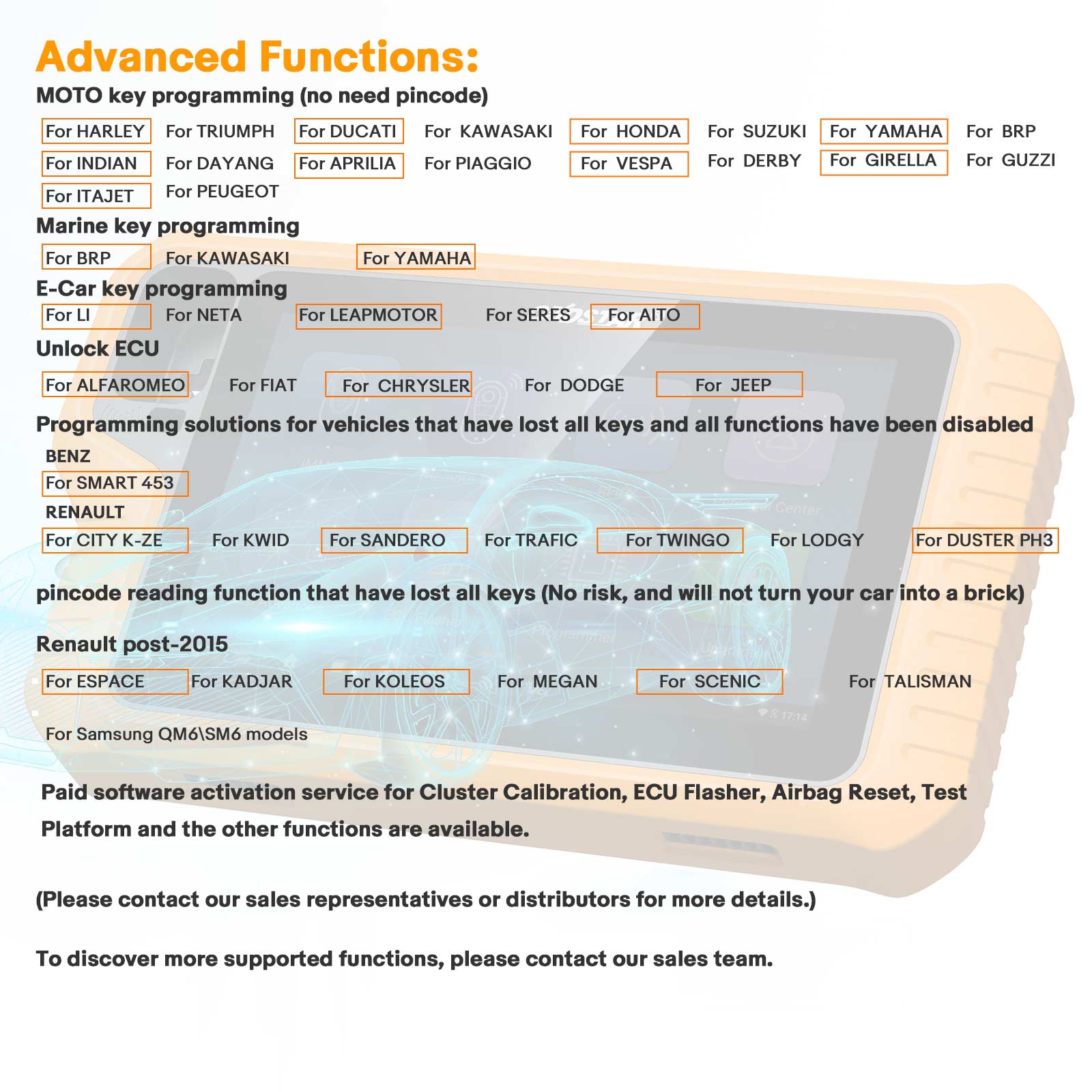

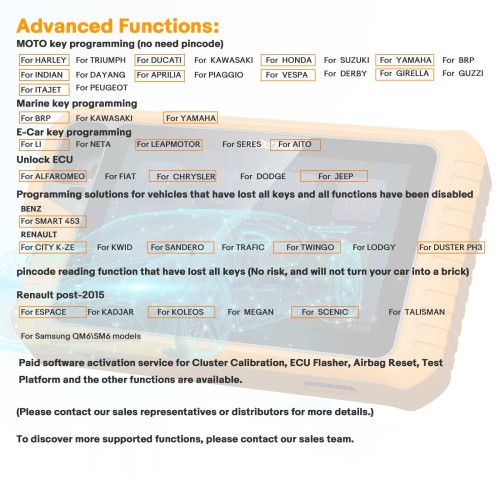

OBDSTAR X300 Classic G3 Features:
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

1. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6SM6 models.
8. Paid software activation service for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and other functions are available.

⚠️ Disclaimer: Some functions of this product involve instrument repair, replacement, and legal calibration only. It is prohibited to use them for illegal mileage alteration or fraudulent purposes. The user is solely responsible for lawful usage.


Key Master G3 Function Module List:
A: IMMO

               A1.1: CAR IMMO
               A1.2: HD IMMO
               A1.3: E-CAR IMMO
               A1.4: MOTO IMMO
               A1.5: MARINE IMMO
               A2.1 Remote Test
               A3.1 ECU Advanced
               A4.1 Make Key
               A4.2 R/W Transponder
               A4.3 Unlock Smart Key
               A5.1 EEPROM/MCU
               A5.2 Renew Key

B: ODO METER
                B1.1: CAR ODO METER
                B1.2: MOTO ODO METER
                B2.1: Oil/Service Reset

C: ECU Flasher
                C1.1: CAR ECM
                C1.2: CAR TCM
                C1.3: CAR BODY
                C2.1: MOTO ECM

D: Crash Reset
                D1.1: Battery Reset (MVBM)
                D1.2: Airbag Reset
                D1.3: SAS Reset

E: Test Platform
                E1.1: Dash Board
                E1.2: E-CAR ABS
                E1.3: Gear Lever
                E1.4: A/C Panel
                E1.5: E-CAR BSG
                E1.6: E-CAR MHEV
                E1.7: E-CAR AUDIO
                E1.8: E-CAR EBA

Any of the above functions can be matched at will.


X300 DP Plus VS X300 Classic G3:

Products   Details		X300 DP Plus C	X300 Classic G3
Hardware	Operation system	Android 5.1.1	Android 11
	OTA	x	√
	Screen recording	x	√
	Wireless screen casting	x	√
	CPU	qual core ARM cortex A9 1.4GHz	Quad-core 64-bit Cortex-A55  2.0GHz
	Battery	3700mAh	9000mAh
	Storage capacity	1+32GB	4+64GB

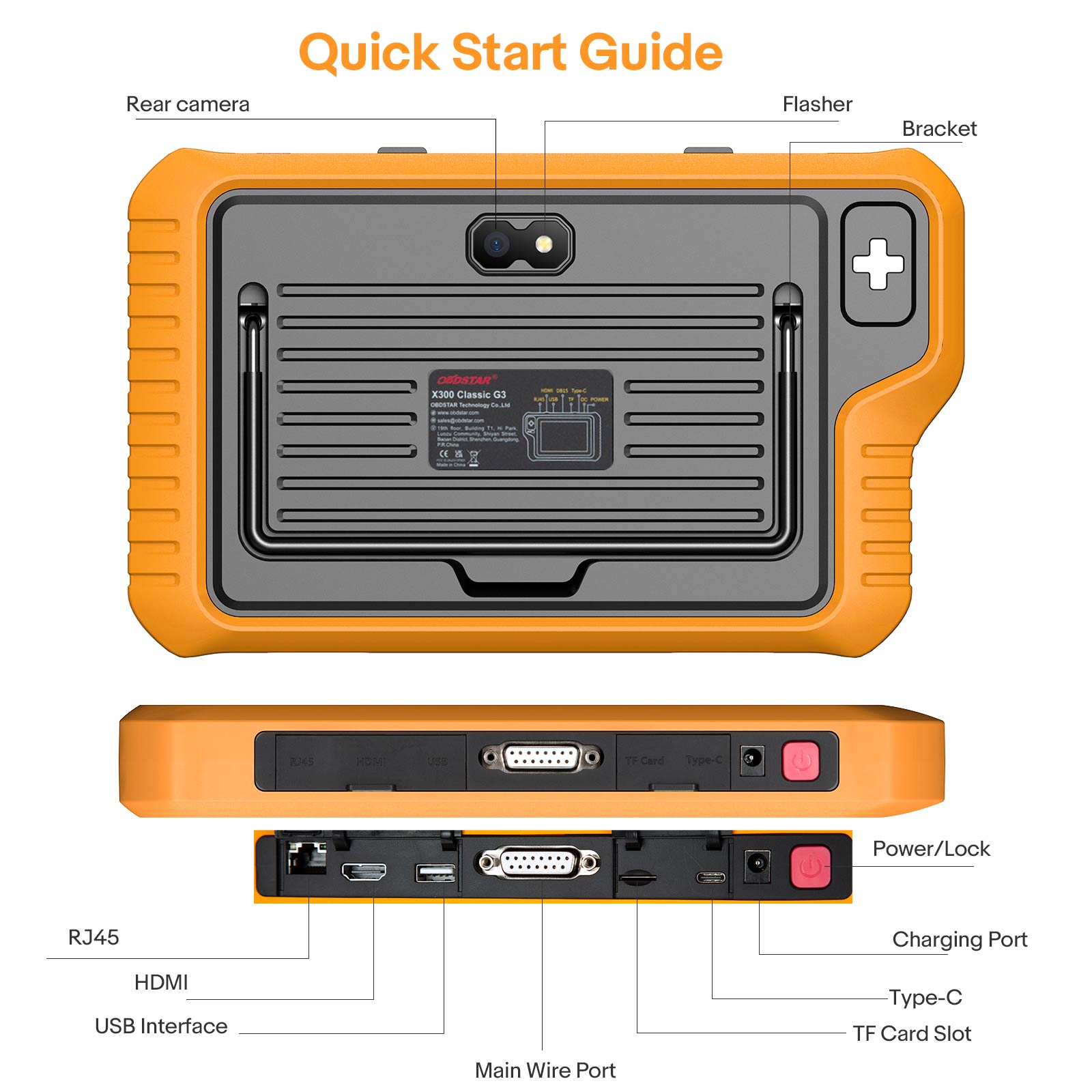

	LCD	8.0 inch	8.0 inch fully laminated sunlight readable screen
	Camera	Rear camera 500W pixels	Rear camera 800W pixels, auto-focus
	Bluetooth	Bluetooth 4.2	Bluetooth 5.0(Compatible with BT 4.2)
	External interfaces	x	RJ-45√
		x	HDMI√
		TYPE-A	TYPE-A,TYPE-C
	WiFi	2.4G	Dual-band 2.4G/5GHZ
	VCI	STM32F105	STM32H723
		CANFD Adapter Required	CANFD built in√
		x	DOIP built in√
		x	Low Speed(Fault Tolerant) CAN  built in√
		x	RS232、RS485  built in√
		All other common protocol types	All other common protocol types
	RFID	P001 Required	Built in√
	Remote Test	RT100 Required	Built in√
	Renault Converter	Renault Converter Required	Built in√
	Weight	About 1kg	1.5kg (main unit)
	Dimension	254mm*174mm*35mm	270.5mm*165mm*39mm
Functions	Diagnosis	√	x
	OBDⅡ	√	√
	Car IMMO	√	√
	MOTO IMMO	√	√
	HD IMMO	√	√
	Marine IMMO	x	√
	E-Car IMMO	x	√
	RFID	x	√
	Make key	x	√
	Unlock Smart key	x	√
	Renew key	√	√
	Read/Write EEPROM MCU	√	√
	ECU advanced（Includes ECU unlock）	x	√
	Oil/Service reset	√	√
	Other service function	√	x
	Remote test	x	√
	ECU flasher IMMO（IMMO OFF、ISN、IMMODATA）	x	√
	ECU flasher（Clone）	√ Limited supported models, different with DC706 and G3	Paid activation
	Car/Motorcycle cluster recalibration	√	Paid activation
	Airbag reset	√	Paid activation
	Test Platform	x	Paid activation



X300 Classic G3 Function Display:

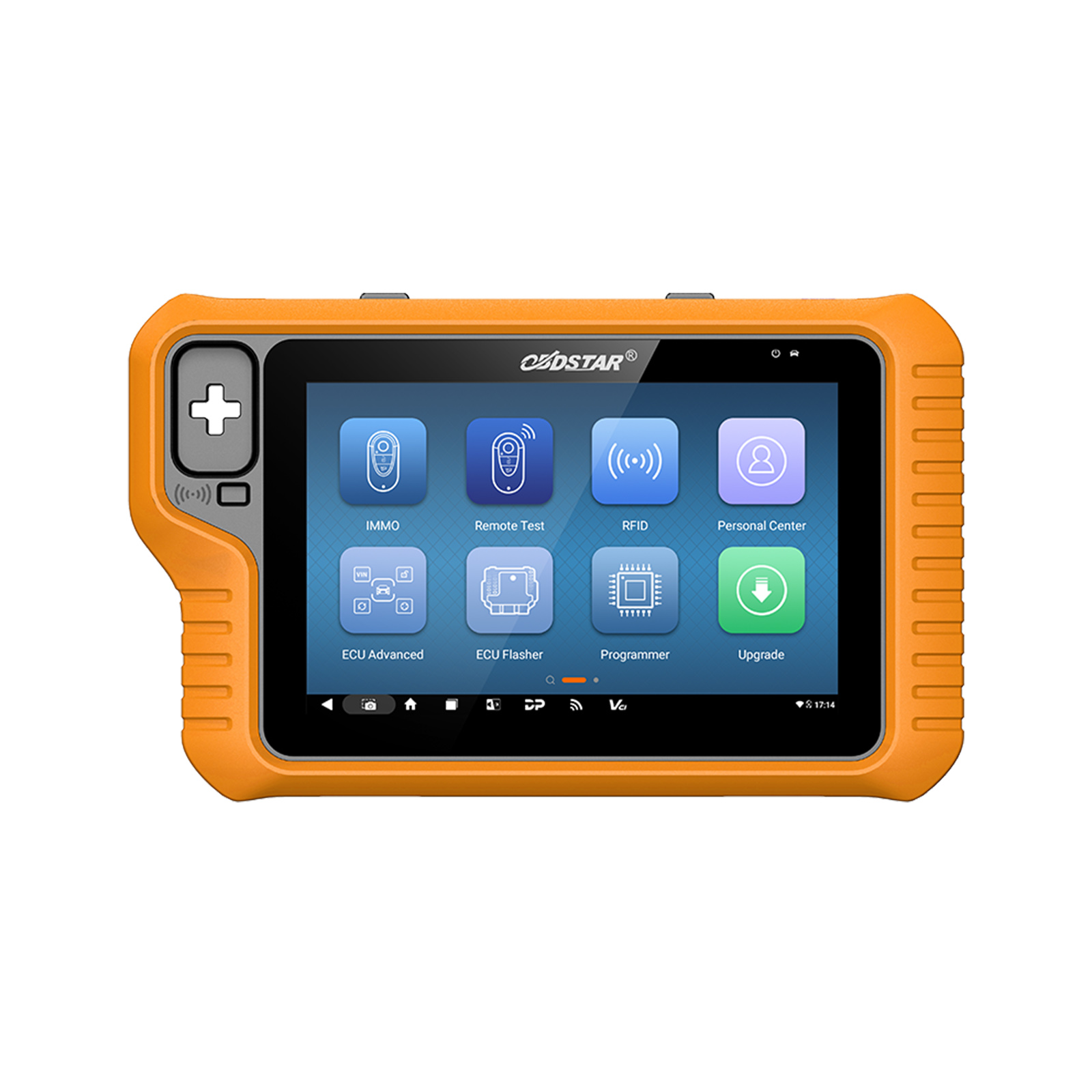

1) Main Page







2) IMMO







3) Remote Test



4) RFID













5) ECU Advanced









6) ECU Flasher















OBDSTAR G3 FULL vs G3 Basic Version

Feature	FULL Version （€2882)	Basic version( €1212)
ECU Cloning	✅	❌
Airbag Reset	✅	❌
Odometer	✅	❌
Test Platform	✅	❌
IMMO	✅	✅



OBDSTAR X300 Classic G3 vs. Autel IM608 II vs. Xhorse Key Tool Plus Welcher Key Programmer ist die beste Investition für 2026?

Key Master G3 Package includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness


Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable

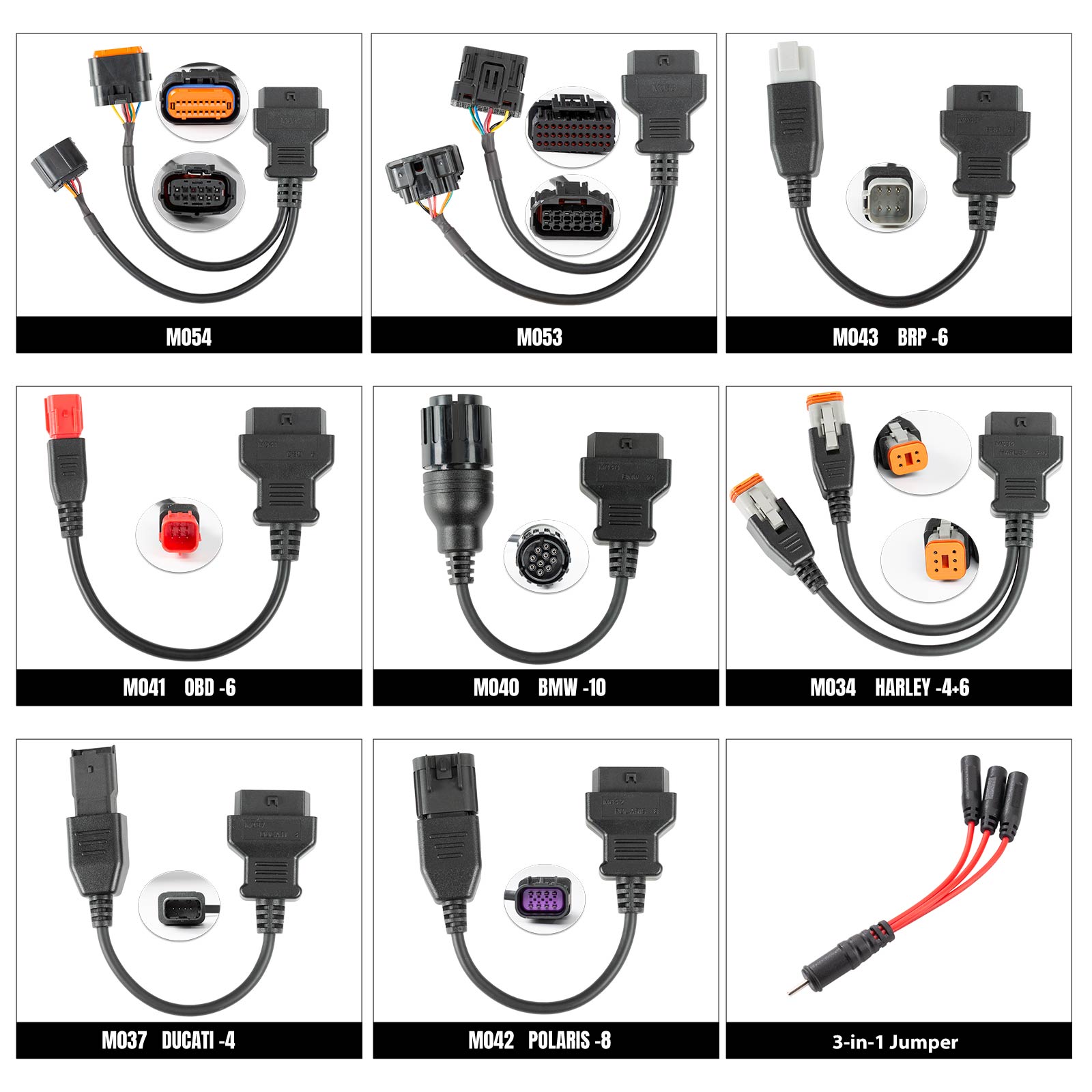

A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA




---
