Anniv Promo EU-Schiff 2 Jahre kostenlose Updates OBDSTAR G3 Full Version Key Programmer – IMMO, ECU Cloning,Airbag Reset & Odometer Tool (Wide Coverage Including BMW / Mercedes / VW)

Product Description

OBDSTAR X300 Classic G3 Key Programmer – Full License


Why Choose FULL Version?

•  All software activated (No extra cost later)
•  All-in-One Key Programmer: Fully activated for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform, IMMO Programming, Odometer Correction, ECU Flasher, Battery Reset, and Steering Angle Calibration.
•  Covers functions of multiple tools in ONE device
•  Saves over €1000 compared to buying licenses separatel
• Software & Updates: 2 years free updates; €354 renewal after expiration. 1 year warranty and lifetime free Tech Support
• Wide Vehicle Coverage: Regularly updated full list of supported cars, motorcycles, e-cars, HD vehicles, and marine (jet-ski).
• Built-in Protocols: CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test, RFID.
• Advanced Hardware: RK3568 Hexa-Core Processor, 4G+64G storage, high-brightness display, HDMI, dual-band Wi-Fi, Bluetooth 5.0, STM32H723 VCI processor.
• Bench BCM PIN Cloning: First locksmith tool to extract/clone BCM PINs on Bench without cutting immo-boxes or buying dealer PINs.
•  Locked MG1/MD1 ECU

  Read/Write & Unlock

  Bosch MD1CP032(BMW B57)TC299
  Bosch MG1CS024(BMW B48/B58)TC298
  Bosch MG1CS201(BMW B48/B58)TC298
  Bosch MD1CS069(FCA)TC299
  Bosch MD1CP006(Ford)TC298
  Bosch MD1CS089(ISUZU etc. TC299(Only for ECU MASTER C)
  More Models Coming Soon...
  NOTE: Requires RH850/V850 adapter kit(C4-06 adapter).
  Software updates may vary by product configuration.

Newest Update

DQ38X/DQ500 GEN2 TCM Cloning Free Update:
Support Function via Bench Mode
1. Support data read/write, mileage calibration and immo data decryption(exclusive) functions for BOSCH DQ380(0DE/0GC)/DQ381(0DE/0GC)/DQ500(0DL) GEN2
Recommneded wiring cable: TCM-005
2. Support data read/write function for ZF AL552 GEN2
Recommneded wiring cable: TCM-004

MB FBS3/FBS4 TCM OBD Virginization! No Risk!: Support FBS3(VGS2/ VGS3-NAG2) and FBS4(VGS-0-NAG2) used TCMs virginization, personalization(data transfer), write vin and more features via OBD or Bench mode, no cutting, no soldering, no additional online programming is required


Main Functions

• IMMO key programming (All Keys Lost supported)
• ECU cloning & unlocking
• Odometer correction
• Airbag reset
• EEPROM / MCU read & write
• Remote key testing

Note:
1. It supports English only, unable to change other languages
2. Please check the OBDSTAR KEYMASTER G3 COVERAGE(FULL)Update 20260601 and KEYMASTER G3 User Manual
Or contact the customer service to get the Newest Vehicle list
3. Some functions of this product involve instrument repair, replacement, and legal calibration only. It is prohibited to use them for illegal mileage alteration or fraudulent purposes. The user is solely responsible for lawful usage.

OBDSTAR X300 Classic G3 – Extension Functions (Optional Accessories)
Ford All Key Lost Cable: Works with P002 Adapter for FORD, LINCOLN, MUSTANG, etc.
Toyota-30 Cable: Supports Proximity Key Programming / All Key Lost (4A & 8A-BA) without piercing harness.
Benz FBS3 Kit: Read PIN, ECU reset/virgin, program/add keys, ECM/TCM/EIS/ELV reset, personalization support.
VW 7-in-1 TCM Kit: ECU cloning, Read/Write MAP, diagnostics, cluster calibration for VW & AUDI automatic transmissions; OBD or bench mode, no TCM removal needed.
TCM Connectors: Transmission mileage calibration and ECU cloning, one-click read/write, no jumper required.
VW4-AKL Cable: Supports VW IMMO IV NEC24C64 & NEC24C32 All Keys Lost.
RH850/V850 Adapter Full Kit: For MQB All Keys Lost.
Toyota-30 V2 Cable: Supports dashboard mileage correction for 2019-S6J3XX and 2021-R7F701401 models.
OBDSTAR C4-07(MB-VGS4-0-NAG2) Adapter Kit Full Configuration: Support all vehicles with VGS4-0 NAG2 7G-Tronic TCU of the FBS4/DAS4 generation Mercedes-Benz; Support solder-free virginizing of used TCM via JTAG mode; Support personalization (data transfer) via BENCH or OBD mode, achieving the same effect as TCM clone.
OBDSTAR C4-08 (MB-VGS4-500-NAG2) Adapter Kit: Support solder-free virginizing of used TCM via JTAG mode and personalization (data transfer) via BENCH or OBDmode, achieving the same effect as TCM clone.
OBDSTAR C4-09 (MB91F526) Adapter Kit: Read/ Write FLASH, DFLASH and immobilizer data decryption.
OBDSTAR CAN Direct-V2: for Toyota/Lexus (proximity key programming)
OBDSTAR P005 Adapter Kit: for solder-free reading IMMO data of BMW BDC02 via BOOT mode(adding keys), and solder-free virginizing of used BMW BDC02 ECU via OBD/BOOT mode


Supported Vehicles

• BMW / Mercedes / VW / Audi
• Ford / Nissan / Toyota
• Motorcycles (Honda, Yamaha, Ducati…)
• Electric Vehicles & Marine

Software functions
Support Programming IMMO(Keys), Remote Test, R/W Transponder, Make Dealer Keys, Make Start Keys, Renew Key, IMMO OFF, R/W EEPROM/MCU, Unlock ECU, ECU Advanced, OBD II etc.

Programming IMMO (Keys): Program immobilizer keys with IMMO programming for various vehicles.
Remote Test: Verify remote key functionality.
Read/Write Transponder: Manage transponder data for key programming.
Make Dealer Keys: Generate dealer-specific keys.
Make Start Keys: Create keys to start vehicles.
Renew Key: Renew used Smart Keys & Remote Control
IMMO OFF: Disable immobilizer systems as needed.
Read/Write EEPROM/MCU: Access and edit EEPROM and MCU data.
Unlock ECU: Perform ECU unlocking on compatible vehicle ECUs.
ECU Advanced: Execute advanced ECU tasks, including unlocking.
OBDII: Perform basic OBDII diagnostics with CAN FD support.

Hardware Advantages
1. Built in CAN-FD, Low Speed(Fault Tolerant) CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID;
2. Quad-core 64-bit Cortex-A55 2.0GHz, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.


Advanced Functions
1. Support Car key programming functions for below models:
MQB all keys lost (supports both PROXIMITY AKL and BLADE AKL, synchronization code calculation is unlimited)
FORD/LINCOLN 2021-key programming
NISSAN SENTRA B18, ROGUE T33 all keys lost
2. Support MOTO key programming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
3. Support Marine key programming function for BRP, KAWASAKI, YAMAHA and others;
4. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
5. Support unlock ECU function for ALFAROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
6. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
7. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
8. Support pincode reading function that has lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
9. With Paid software activated for Cluster Calibration, ECU Flasher, Airbag Reset, Test Platform and the other functions are available. (After you register the device, please send us device serial number)


Function Module List:

A: IMMO(Support poweful IMMO Function than X300 DP Plus)
A1.1: CAR IMMO
A1.2: HD IMMO
A1.3: E-CAR IMMO
A1.4: MOTO IMMO
A1.5: MARINE IMMO
A2.1 Remote Test
A3.1 ECU Advanced
A4.1 Make Key
A4.2 R/W Transponder
A4.3 Unlock Smart Key
A5.1 EEPROM/MCU
A5.2 Renew Key

B: ODO METER(Fully supports same Cluster Mileage Correction function as ODOmaster)
B1.1: Car ODO METER
B1.2: MOTO ODO METER
B2.1: Oil/Service Reset

C: ECU Flasher(Fully supports same ECU flasher function as DC706 Full)
C1.1: CAR ECM
C1.2: CAR TCM
C1.3: CAR BODY
C2.1: MOTO ECM

D: Crash Reset(Fully supports same functions as P50)
D1.1: Battery Reset (MVBM)
D1.2: Airbag Reset
D1.3: SAS Reset

E: Test Platform(Fully supports same function as MT501 & MT502)
E1.1: Dash Board
E1.2: E-CAR ABS
E1.3: Gear Lever
E1.4: A/C panel
E1.5: E-CAR BSG
E1.6: E-CAR MHEV


X300 Classic G3 Function Display:

1) Main Page







2) IMMO







3) Remote Test



4) RFID













5) ECU Advanced









6) ECU Flasher
















OBDSTAR G3 FULL vs G3 Basic Version

Feature	FULL Version （€2882)	Basic version( €1212)
ECU Cloning	✅	❌
Airbag Reset	✅	❌
Odometer	✅	❌
Test Platform	✅	❌
IMMO	✅	✅

OBDSTAR X300 Classic G3 vs. Autel IM608 II vs. Xhorse Key Tool Plus Welcher Key Programmer ist die beste Investition für 2026?

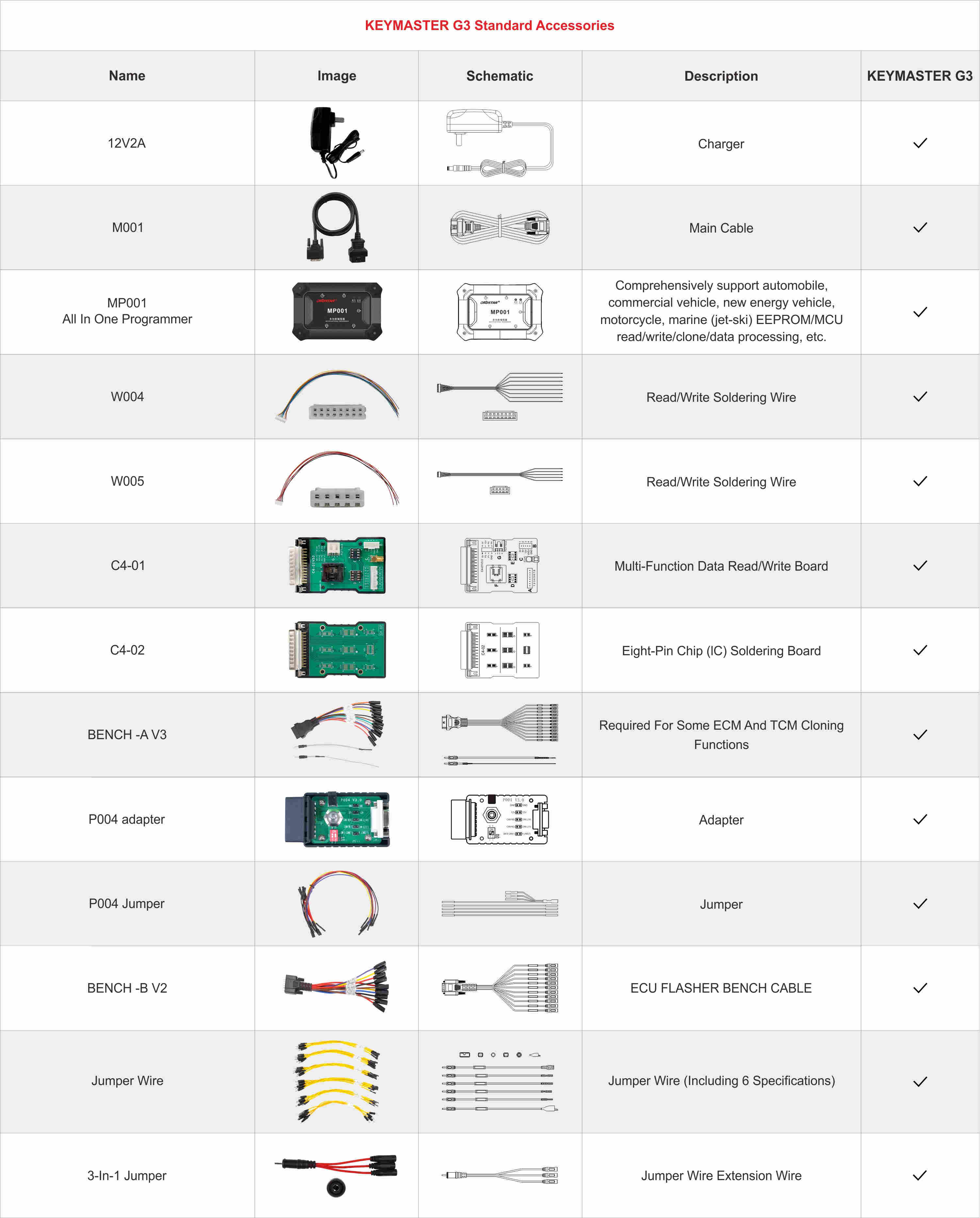

Package Includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness
1pc x 3-in-1 jumper

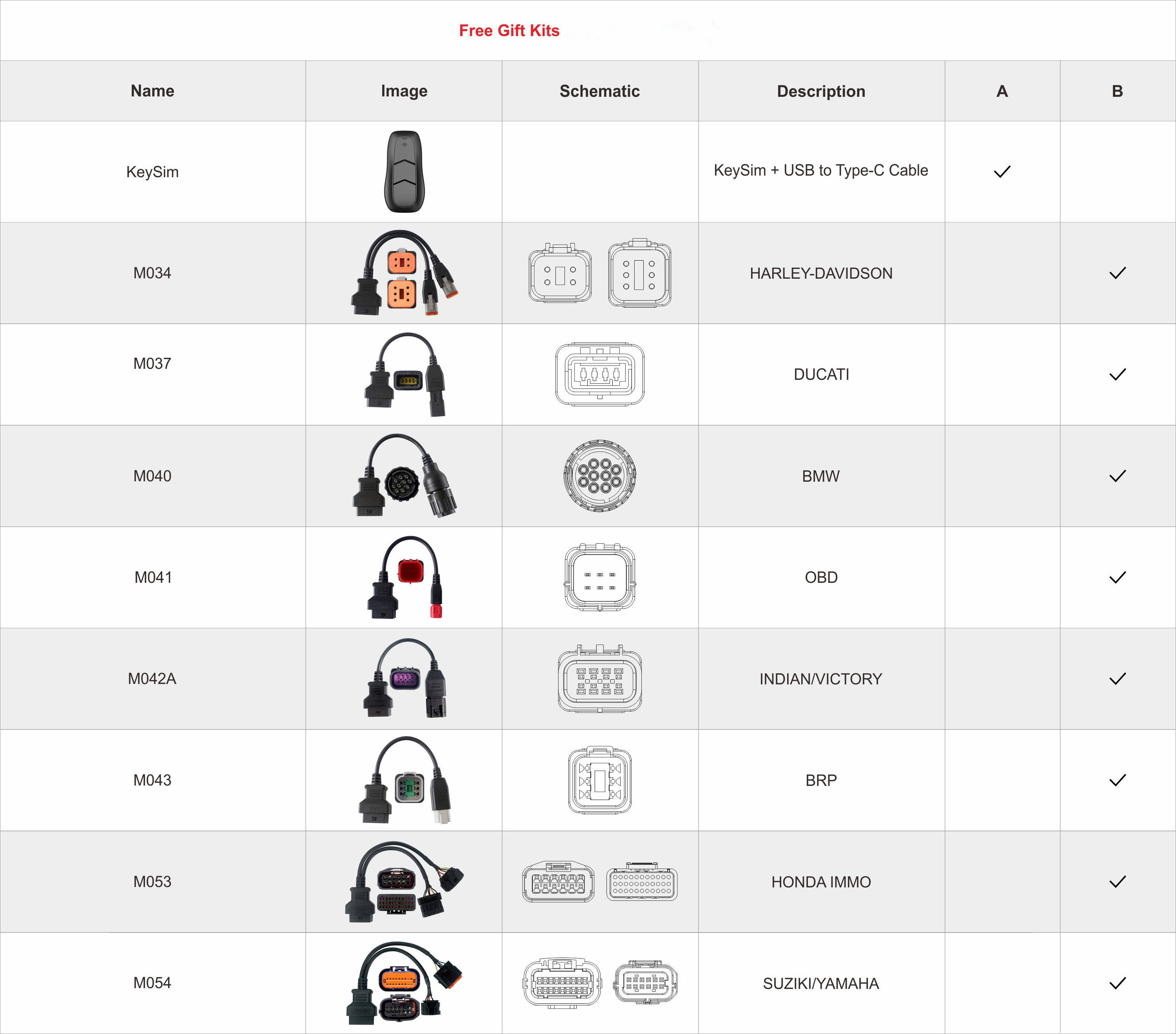

Free Gift Kits:
A1
1pc x KeySlim + USB to Type-C Cable
A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA


---
