EU-Schiff OBDSTAR DC706 ECU Tool Full Version mit P003+ Kit – Auto & Motorrad ECM, TCM & BODY Clone via OBD oder BENCH, inkl. TCM Benz FBS4 DSM

Product Description

OBDSTAR DC706 ECU Tool Full Version mit P003+ Kit – Auto & Motorrad ECM, TCM & BODY Clone via OBD oder BENCH, inkl. TCM Benz FBS4 DSM

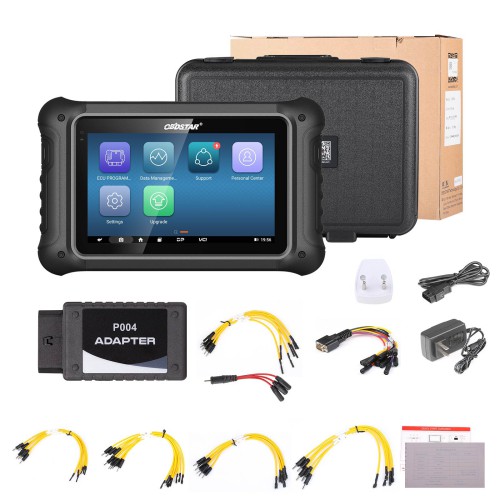

Package Contains: OBDSTAR DC706 ECU Tool Full Version and New P003+ KIT & ECU Bench Cable


Top reasons to get this package

• Full version DC706 ECU Tool + ECM + TCM + BODY (7 configurations for choosing (details in Specifications column)
• DC706 support One year free update online, after one year update subscription price: Not expired or expired within 7 days update 149 USD/year, Over 7 days update 249 USD/year
• P003+ Kit Portable Design, Easy Operation with High Performance
• Buy bundle package, save more money !
• Free Shipping Deal No Tax



OBDSTAR DC706 Highlights

1. Stand-alone operation – No PC required.

2. Cost-effective – Similar to I/O Terminal but only about one-third of the price.

3. Wide module cloning support – BCM, ECU, TCU, RFH for cars and motorcycles.

4. Extensive ECU coverage – Includes MJD 8F2/8F3/6F3, IAW 8GF/8GSF/7GF/9GF/9GV/10GF, BMW MSD80/85/87, MSV80/90, GPEC2–GPEC4, Hyundai/Kia SIM2K series, VW/Audi Simos 18.x, Renault Siemens Sirius 34, GM Acdelco E39/E39A/E80/E84/E83/E90, Benz DSM/DSM222 (FBS4) and more.

5. Multiple connection modes – OBD, bench, and boot mode.

6. Advanced features – IMMO OFF, ISN reading, DSG mileage reset for DQ380/DQ500/DQ381, checksum correction.

7. User-friendly guidance – Step recording, wiring diagrams, and operation instructions shown on screen.

8. Frequent software updates – 1-year free; renewal discount if updated before expiry

Note:

• Does not clone VAG DQ250 before year 2008.

• P004 adapter is located in the second layer of the suitcase.

• Unable to add other functions, such as odometer correction, airbag reset, or key programming.

• Please register the device before use, following the OBDSTAR DC706 register manual (Distributor code: 0086A002).

• Language: English only.

• Please check the latest OBDSTAR DC706 car list(20260313) before purchase
  Please register the device before use, following the OBDSTAR DC706 manual (Distributor code: 0086A00200)

• OBDSTAR DC706 updates frequently — please update to the latest version before testing vehicles.

DC706 ECU tool Description:

OBDSTAR DC706 ECU tool, with 1-year free upgrade, is designed for vehicle ECM, TCM and body/other system for ECU flasher. It can read ECU info, R/W Eeprom/Dflash/Pflash/MAP, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery... It's all by OBD or bench mode and makes ECU cloning easy.



DC706 Function:

ECU Clone/ All by OBD or Bench
ECM clone for cars(Bosch, Continental, Delphi, Denso, Magneti Marelli, Siemens...)
ECM clone for motorcycles(Bosch, Delphi, EFI...)
TCM clone(Ac Delco, Bosch, Continental, Getrag, GM, Kefico, Siemens, Temic, ZF...)
Body/Other clone(FCA, FIAT, FORD, GM/OPEL, LAND ROVER/JAGUAR, PSA, SMART, VOLVO...)


Supported ECU Manufacturers:

ALPS
Autoliv
Bosch
Continental
Delphi
Denso
Johnson Controls
Lear
Magneti Marelli
Siemens
Temic
Valeo


Supported Brands:

Car:

ASTON MARTIN
BMW
FAW
FCA(ALFA ROMEO, CHRYSLER, DODGE, FIAT...)
FORD/LINCOLN
GM/OPEL
HYUNDAI/KIA
LAND ROVER/JAGUAR
LUXGEN
MASERATI
MAZDA
MITSUBISHI
NISSAN
OPEL
PSA
SMART
SUBARU
SUZUKI
VOLVO
VW/AUDI/SEAT/SKODA


Motorcycle:

APRILIA
BRP
CFMOTO
DERBI
GILERA
GUZZI
PEUGEOT
PIAGGIO
QJBENELLI
VESPA




Advanced Functions:

1. R/W eeprom/dflash/pflash/Map, reset ECU(Virgin), calibrate mileage, read IMMO pincode, ECU recovery...
2. Support 710+ ECM types(Partial functions require P003 adapter.)
3. Support 210+ TCM types
4. Support 120+ body/other ECU types(AIRBAG, BCM, BSI, CEM, DDM/PDM, DIM, EPS, KeyLess(RFHUB/RFHM), KVM, RFA, SAM...)
5. Support VW DQXXX (TCM) calibrate mileage
6. Support motorcycle Delphi MT05, MT05.2, MT05.3 ECU clone
7. Support motorcycle BRP ME17.8.5 ECU clone (works with P003 adapter)
8. Support Piaggio series engine ECU clone(such as MIU G4 (M4G1))
9. Support intelligent search by brand, model, part No., ECU manufacturer, MCU controller type
10. Support automatic identification
11. Strong help data files
12. All by OBD or Bench mode

More functions are in developing...


OBDSTAR DC706 Specifications:


Operation system	Android 5.1.1
CPU	RK3128 quad-core ARM cortex A7
Battery	3700mA, rechargeable polymer lithium battery
Extension memory card	32G micro SD (TF) card supported
Storage capacity	16GB
LCD	7.0 inch
LCD resolution	1024*600
Touch screen	Capacitive touch screen
Wifi	Supported
Working temperature	-20℃~55℃ (14℉~131℉)
Storage temperature	-20℃~70℃ (-4℉~158℉)
Weight	About 1.3kg
Dimension	243mm*148mm*36mm


DC706 Function Display:

1) Main Page/Brand Supported




2) ECM Clone for Cars






3) ECM Clone for Motorcycles



4) TCM Clone






5) Body/Other Clone







OBDSTAR P003+ Kit –
Compatible with DC706 Tablets, Supports ME9.0, MED9.1, MED9.6.1, MED9.5.10, EDC16C39, EDC16CP35, EDC16C8

OBDSTAR P003+ Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc.

PO03+ is compatible with P003 and supports the following models require a higher frequency clock during the decryption process(ME9.0, MED9.1,MED9.6.1, ME9.6.1, MED9.5.10,EDC16C39, EDC16CP35, EDC16C8).

P003+ Kit Highlights

1. Portable Design
2. Easy Operation
3. High Performance

P003+ Kit Features:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT

2. Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT

3. Bosch EDC17C60 reading eeprom , PinCodeP003 KIT

4. Bosch MD1CS018 reading eeprom, PinCodeP003 KIT

5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value

6. Bosch ME17XX reading & writing eeprom, flash

7. T87A, 6HP reading & writing TCM eeprom, flash

8. Add compatibility with P002 adapter (need to use with OBDSTAR IMMO series tablets).

9. Support below special models:

ME9.0

MED9.1

MED9.6.1

ME9.6.1

MED9.5.10

EDC16C39

EDC16CP35

EDC16C8


P003+ Kit Supported list:

1. Continental PCR2.1(TC1796)

2010-2014 Audi A1 (8X) 1.6L Diesel

2009-2012 Audi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 VW Caddy (2K) 1.6L Diesel

2009-2013 VW Golf VI 1.6L Diesel

2010-2013 VW Golf Plus 1.6L Diesel

2011-2014 VW New Beetle (9C) 1.6L Diesel

2011 VW Passat (B7) 1.6L Diesel

2009-2014 VW Polo V 1.6L Diesel

2010-2015 VW Touran (1T) 1.6L Diesel

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

Toyota Proace

4. Bosch MD1CS018

Mahindra BS-6

5. Bosch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)

VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...


6. Bosch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)

VW/Audi/Skoda/Seat, Bentley...


DC706 Package Includes:
1pc x OBDSTAR MP001 Programmer
1pc x OBDSTAR C4-01 Host
1pc x W004 Read/Write soldering wire
1pc x W005 Read/Write soldering wire
1pc x OBDSTAR ECU Bench Jumper
1pc x OBDSTAR P003+ adapter
1pc x ECU BENCH jumper


---
