Product Description

Seond Hand 95% New

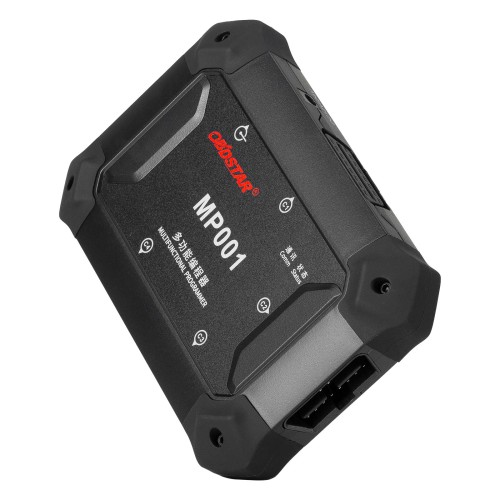

(Seond Hand 95% New)OBDSTAR MP001 Programmer Set for DC706/X300 G3/P50

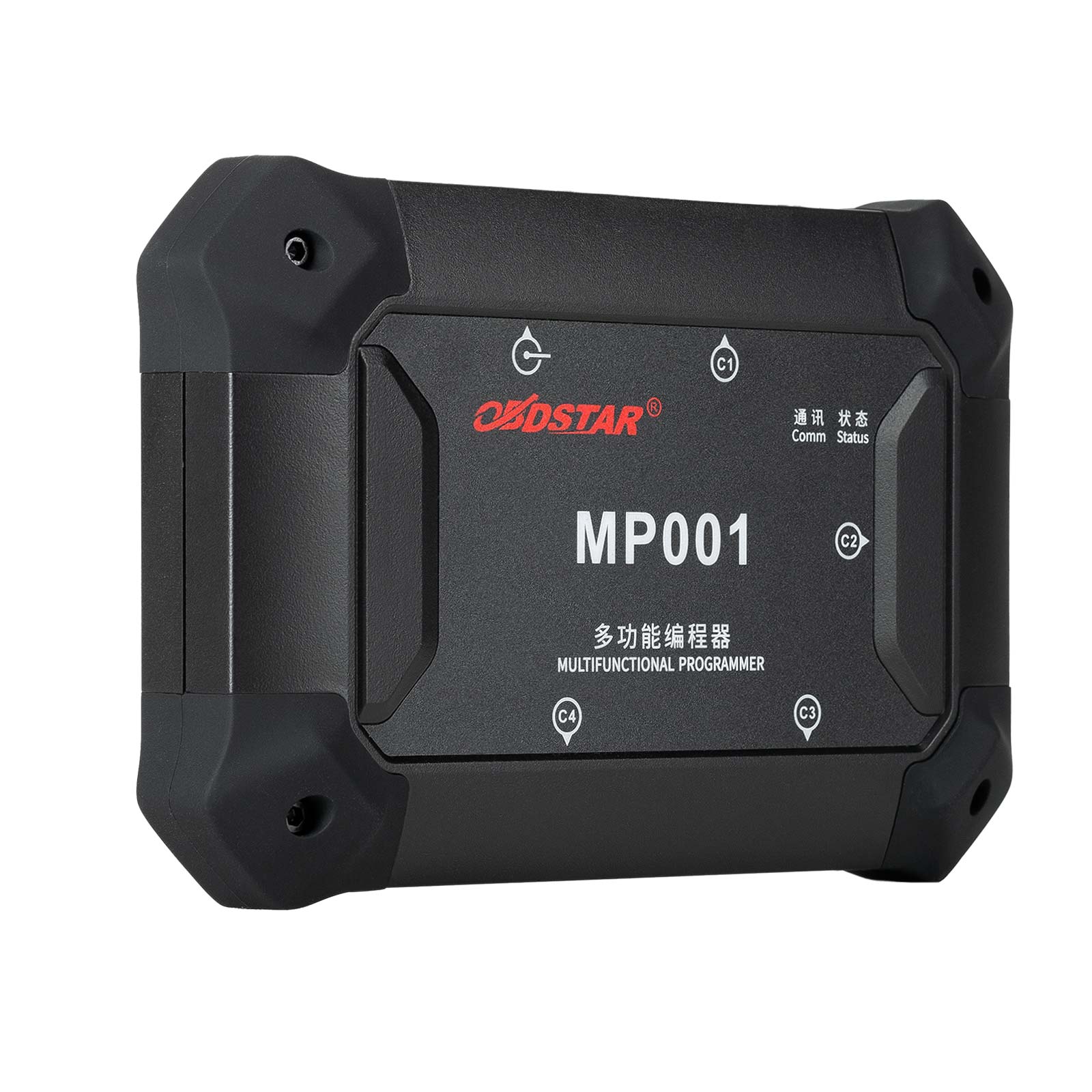

OBDSTAR MP001 Description
MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports data read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).Compatible with DC706, MS80, MS50, P50


 OBDSTAR MP001 Features:
1. MP001 is compatible with P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
2. MP001 Programmer=P002 Adapter+P003/P003+ Adapter
3. Working with OBDSTAR DC706, X300 Classic G3, MK70, X300 DP Plus, OBDSTAR P50, OBDSTAR MotoMaster together
4. OBDSTAR P50 supports the data reading/writing and repair of the new SRS ECU with encrypted RH850 processor(MP001 Programmer and RH850/V850 Adapter Kit is required)


Software function:
Read/Write EEPROM/MCU
Renew Key
SAS Reset
Body/Chassis/Other data processing
Read PinCode
Synchronize IMMO data
Dash Mileage Calibration
CAR/HD/Marine/Motorcycle Read/Write ECU DATA
Program BENZ FBS3 Keys
RH850/V850 Data Read/Write


Note:
1. Different tablet device models require different configuration software.
2. To use MP001 programmer, you must have ECU bench jumper cables, come with the package by default

Following Models Can be Supported by MP001 Only
BRAND ECU BRAND TYPE DUMP Read INT flash Read INT eeprom Read EXT flash Read EXT eeprom Write INT flash Write INT eeprom Write EXT flash Write EXT eeprom CS IMMO OFF Write VIN Other COMM. MODE Adapter
AUDI CONTINENTAL/SIEMENS/VDO SIMOS18.1 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
AUDI CONTINENTAL/SIEMENS/VDO SIMOS18.10 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
AUDI CONTINENTAL/SIEMENS/VDO SIMOS18.3 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
AUDI CONTINENTAL/SIEMENS/VDO SIMOS18.6 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
BENZ BOSCH DCU17PC01 TC1766 √ √     √ √     √       BENCH MP001
FORD BOSCH DCU17PC01 TC1766 √ √     √ √     √       BENCH MP001
FORD FOMOCO PCM170F MC9S12C32MPB25 √       √       √       BENCH MP001
HYUNDAI CONTINENTAL/SIEMENS/VDO SIM2K-258 TC1782F √ √     √ √     √       BOOT MP001
HYUNDAI CONTINENTAL/SIEMENS/VDO SIM2K-259 TC1782N √ √     √ √     √       BOOT MP001
KIA CONTINENTAL/SIEMENS/VDO SIM2K-258 TC1782F √ √     √ √     √       BOOT MP001
KIA CONTINENTAL/SIEMENS/VDO SIM2K-259 TC1782N √ √     √ √     √       BOOT MP001
PORSCHE CONTINENTAL/SIEMENS/VDO SDI10.2 TC1797 √     √ √     √ √       BOOT MP001
PORSCHE CONTINENTAL/SIEMENS/VDO SIMOS18.1 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
PORSCHE CONTINENTAL/SIEMENS/VDO SIMOS18.10 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
RENAULT CONTINENTAL/SIEMENS/VDO EMS3120 TC1738 √ √     √ √     √   √ Clear VIN
Reset Virgin		 BOOT MP001
RENAULT CONTINENTAL/SIEMENS/VDO EMS3125 TC1782 √ √     √ √             BOOT MP001
SEAT CONTINENTAL/SIEMENS/VDO SIMOS18.1 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
SEAT CONTINENTAL/SIEMENS/VDO SIMOS18.10 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
SKODA CONTINENTAL/SIEMENS/VDO SIMOS18.1 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
SKODA CONTINENTAL/SIEMENS/VDO SIMOS18.3 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
SKODA CONTINENTAL/SIEMENS/VDO SIMOS18.6 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.1 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.10 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.2 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.3 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.6 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001
VOLKSWAGEN CONTINENTAL/SIEMENS/VDO SIMOS18.7 TC1791 √ √     √ √     √     IMMO Data Decryption BOOT MP001


MP001 Programmer Specification:

CPU

STM32F407VET6

Interface

DC Power Connector, OBD Female, OBD Male, DB9, DB25

Input Voltage

DC 12V/24V

Battery

500mA

Weight

About 260g

Working temperature

-10℃~55℃ (14℉～131℉)

Dimension

165mm*110mm*35mm

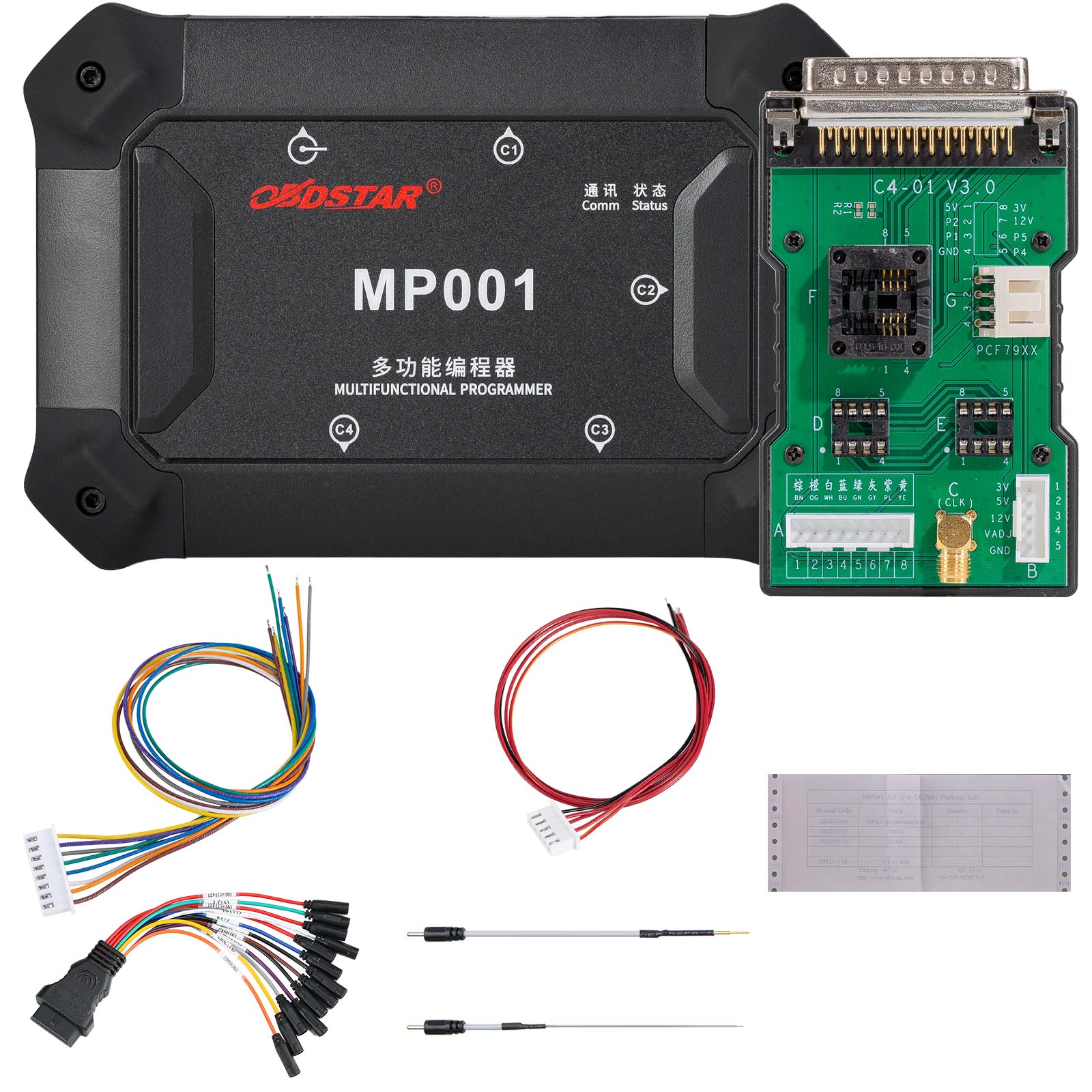

MP001 Programmer Includes:

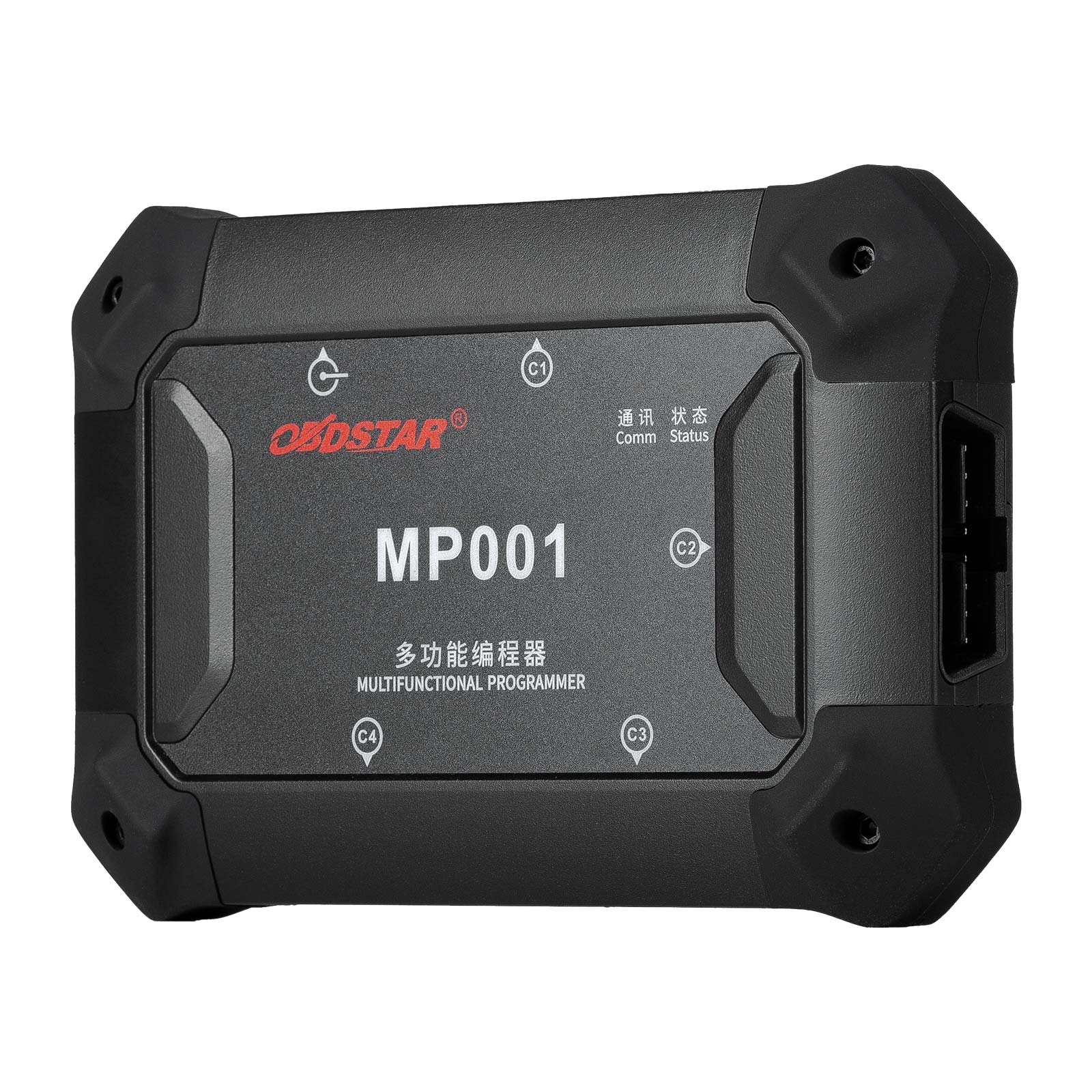

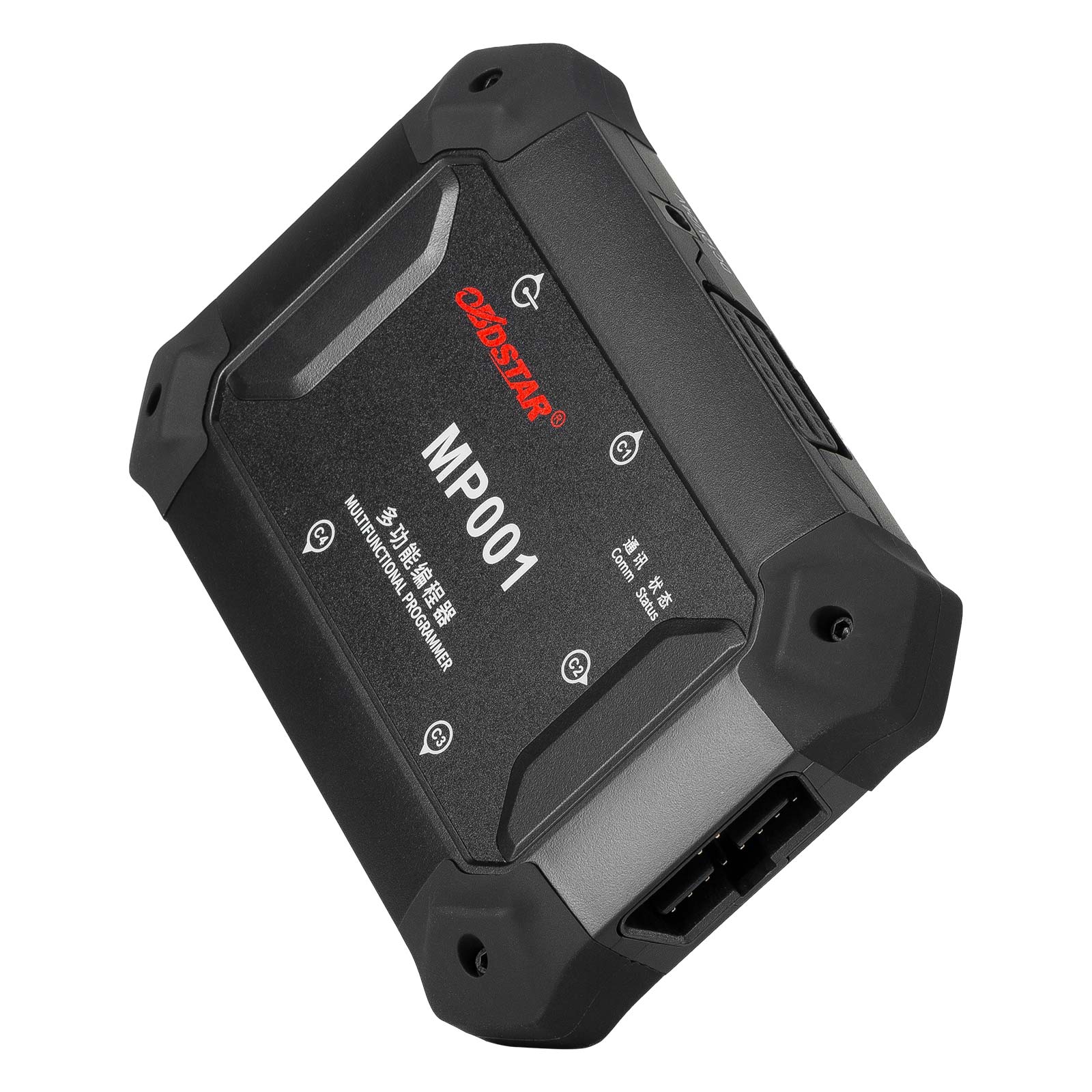

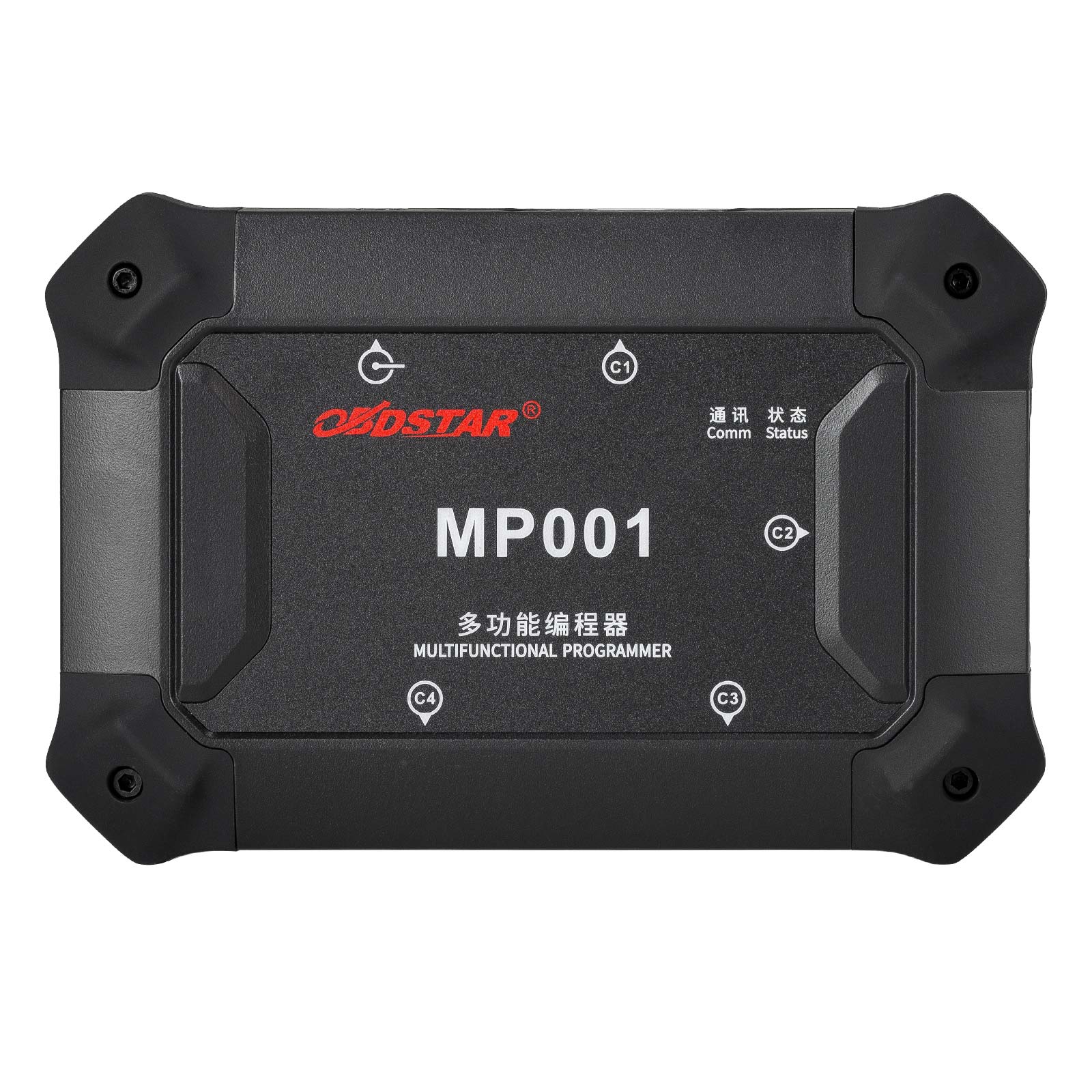

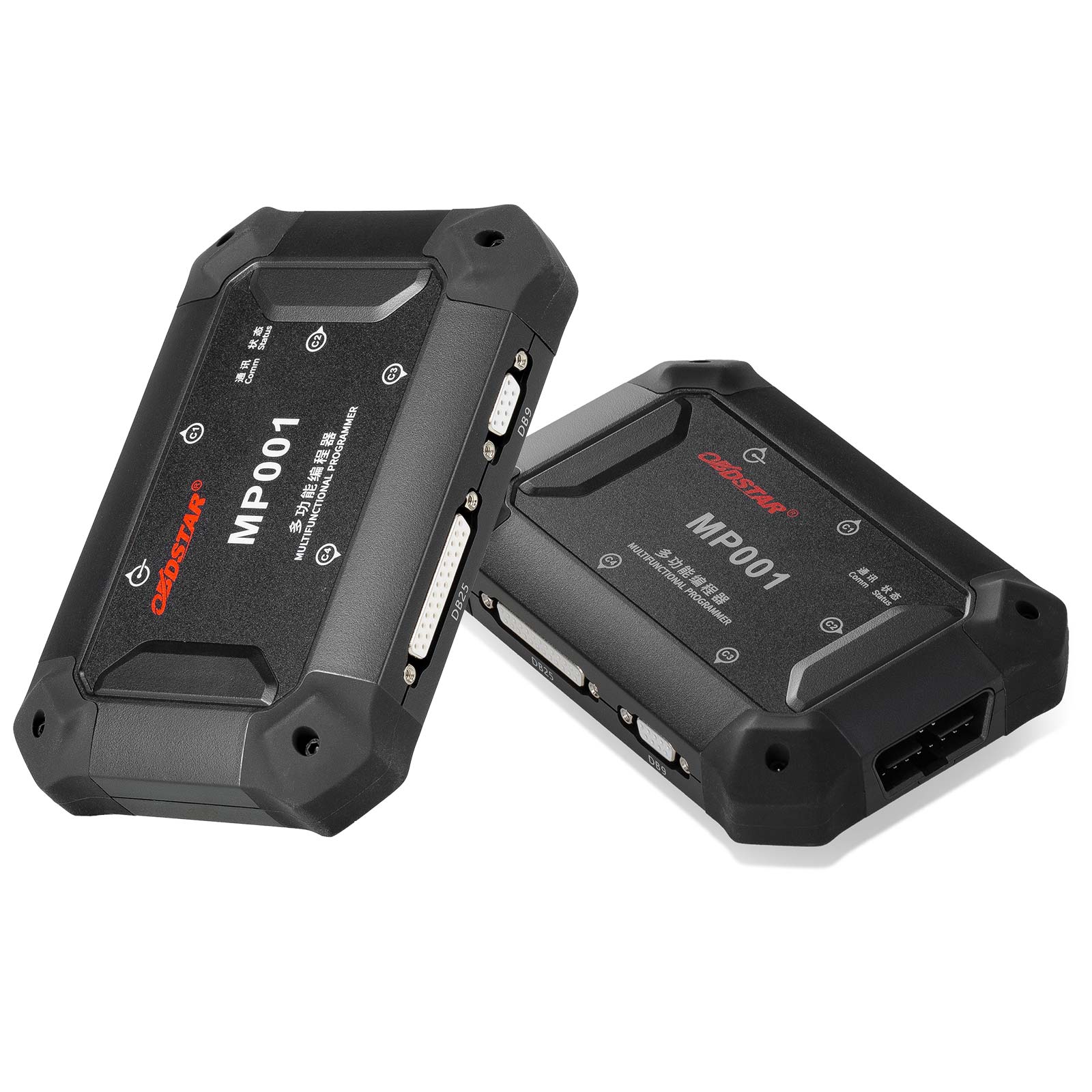

1pc x OBDSTAR MP001 Programmer

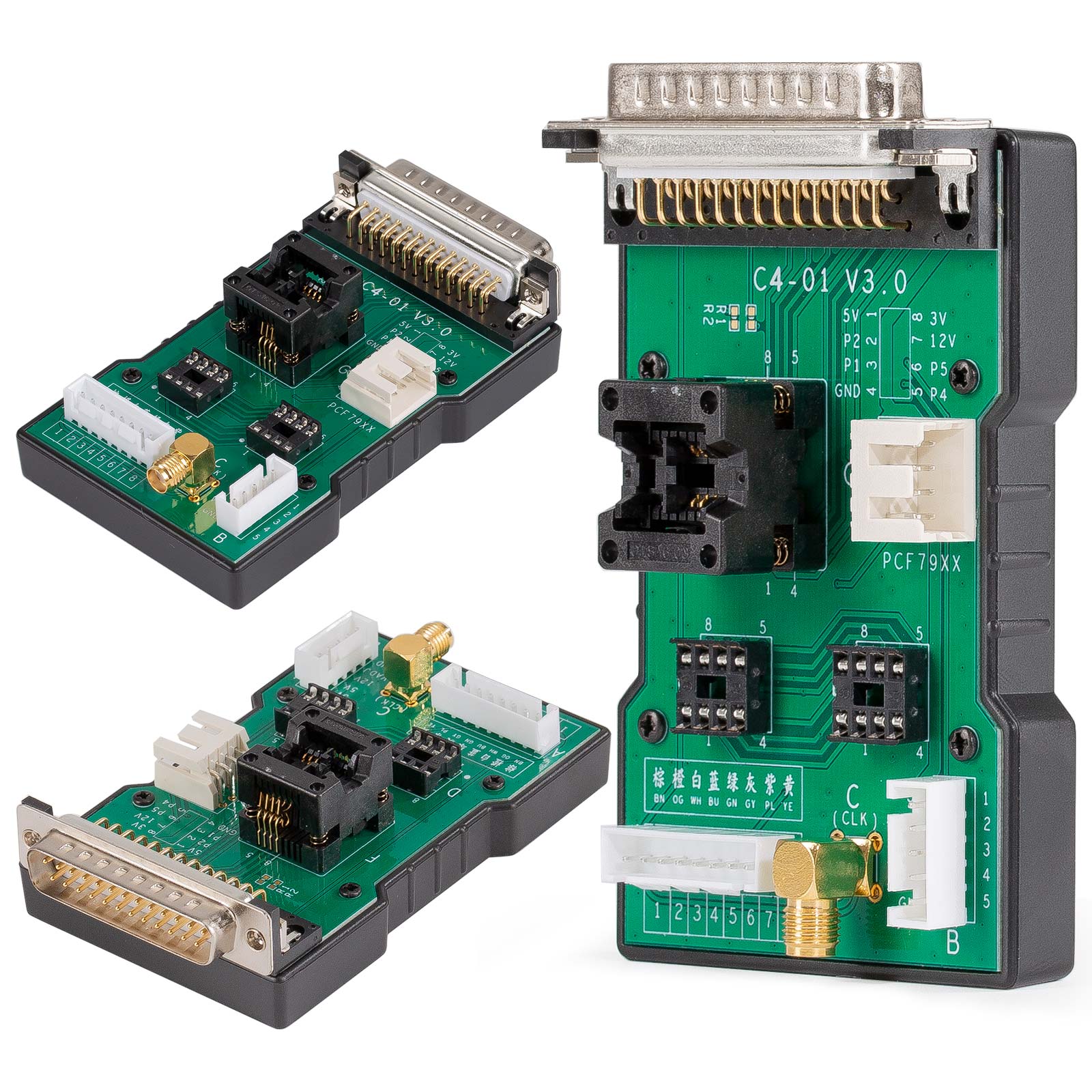

1pc x OBDSTAR C4-01 Host
1pc x W004 Read/Write soldering wire
1pc x W005 Read/Write soldering wire

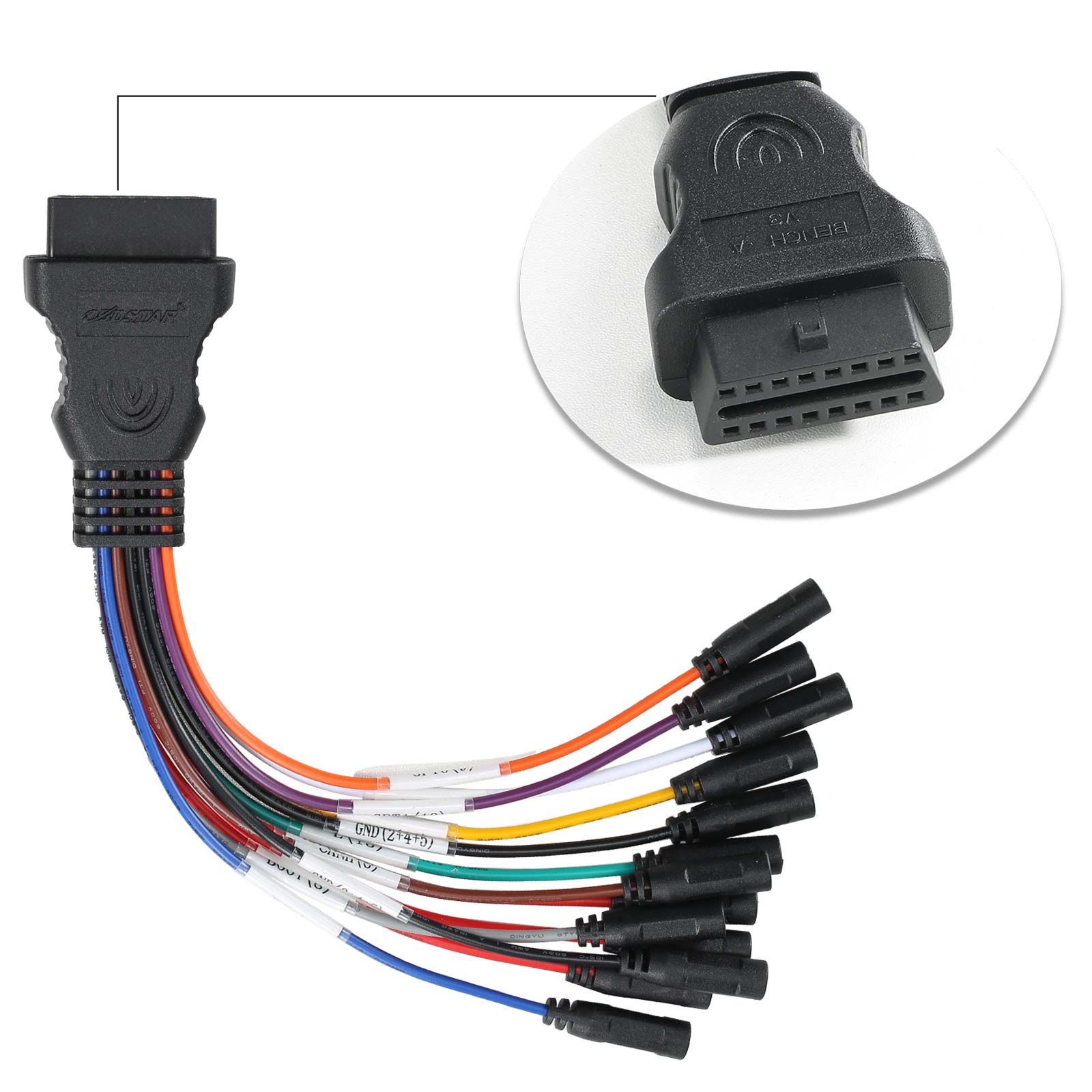

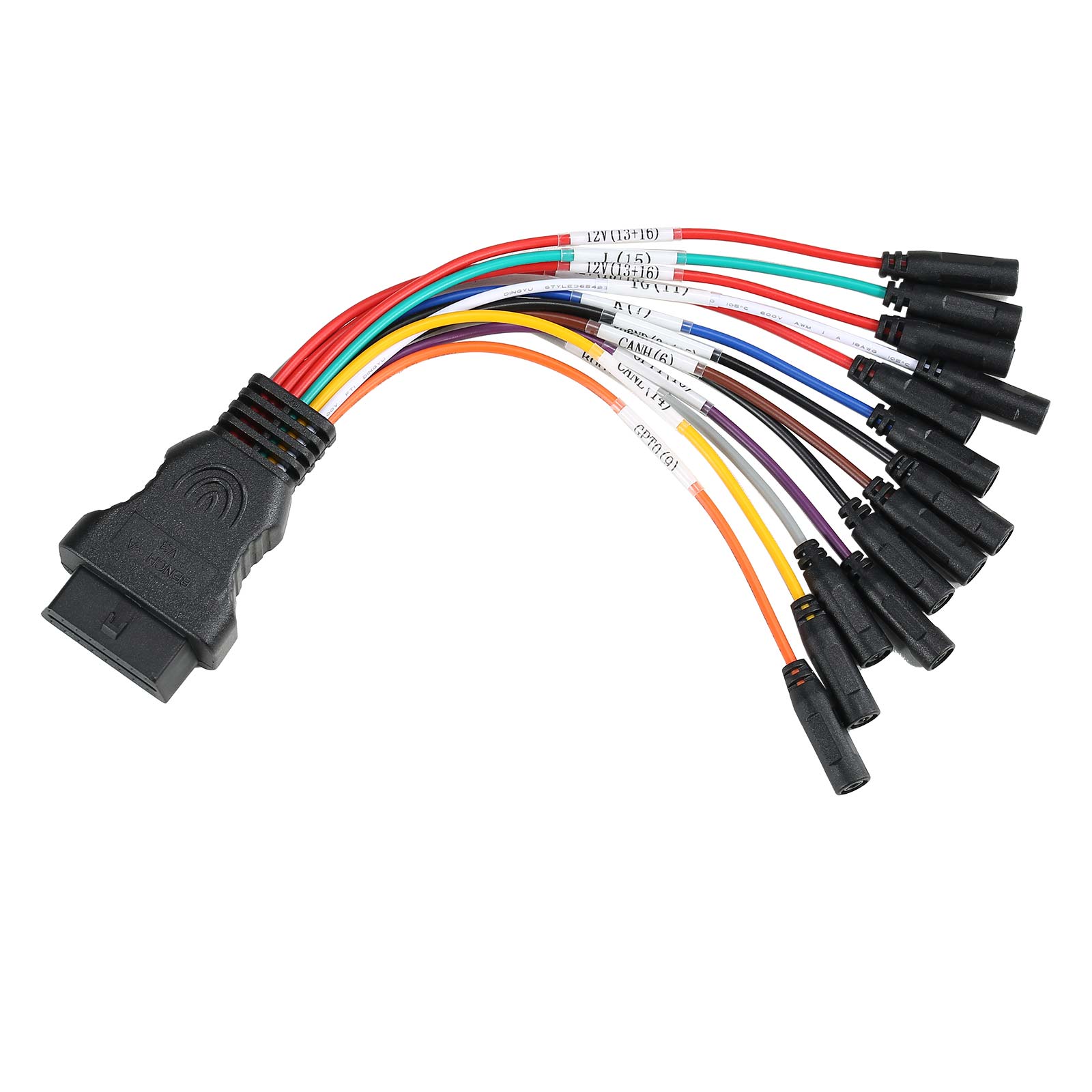

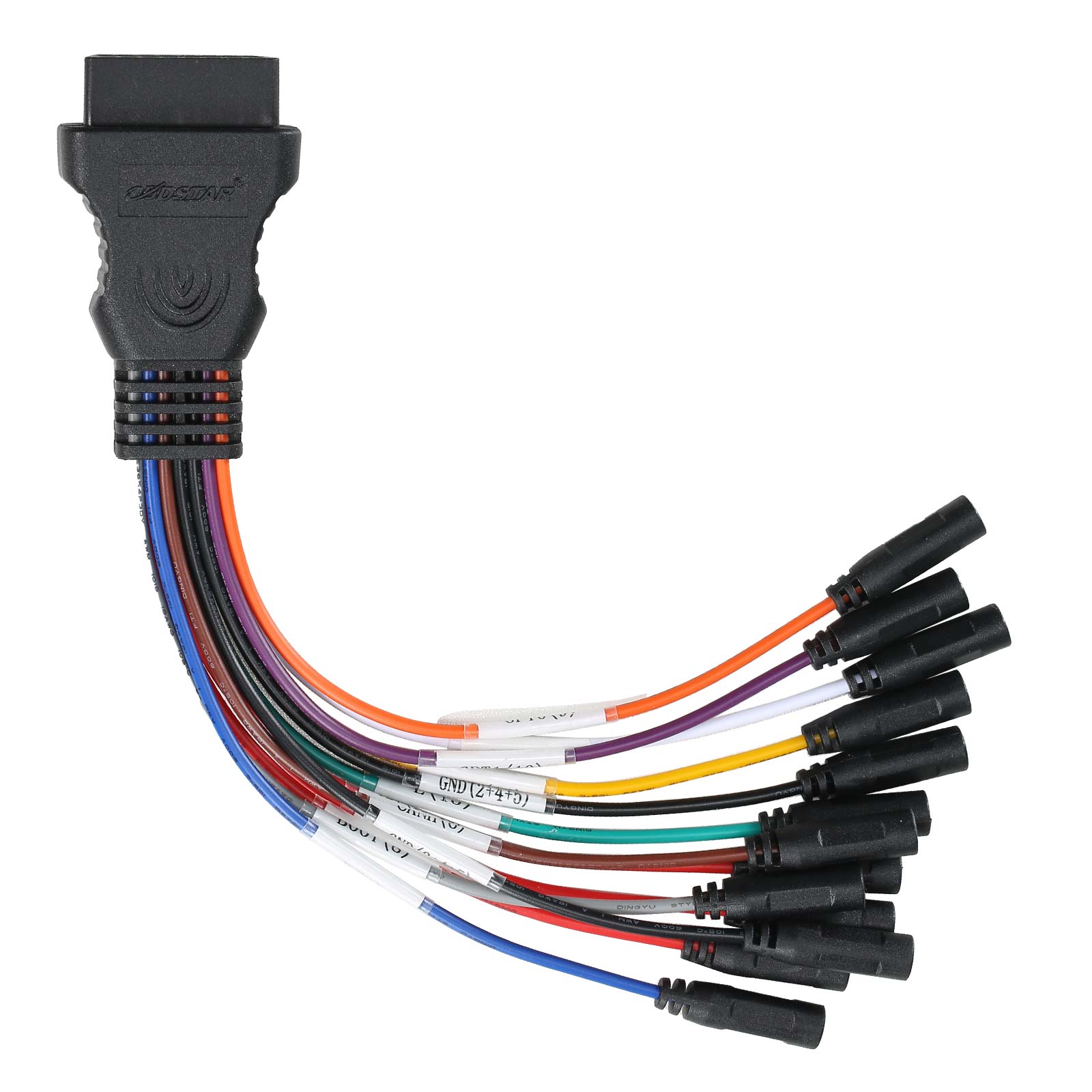

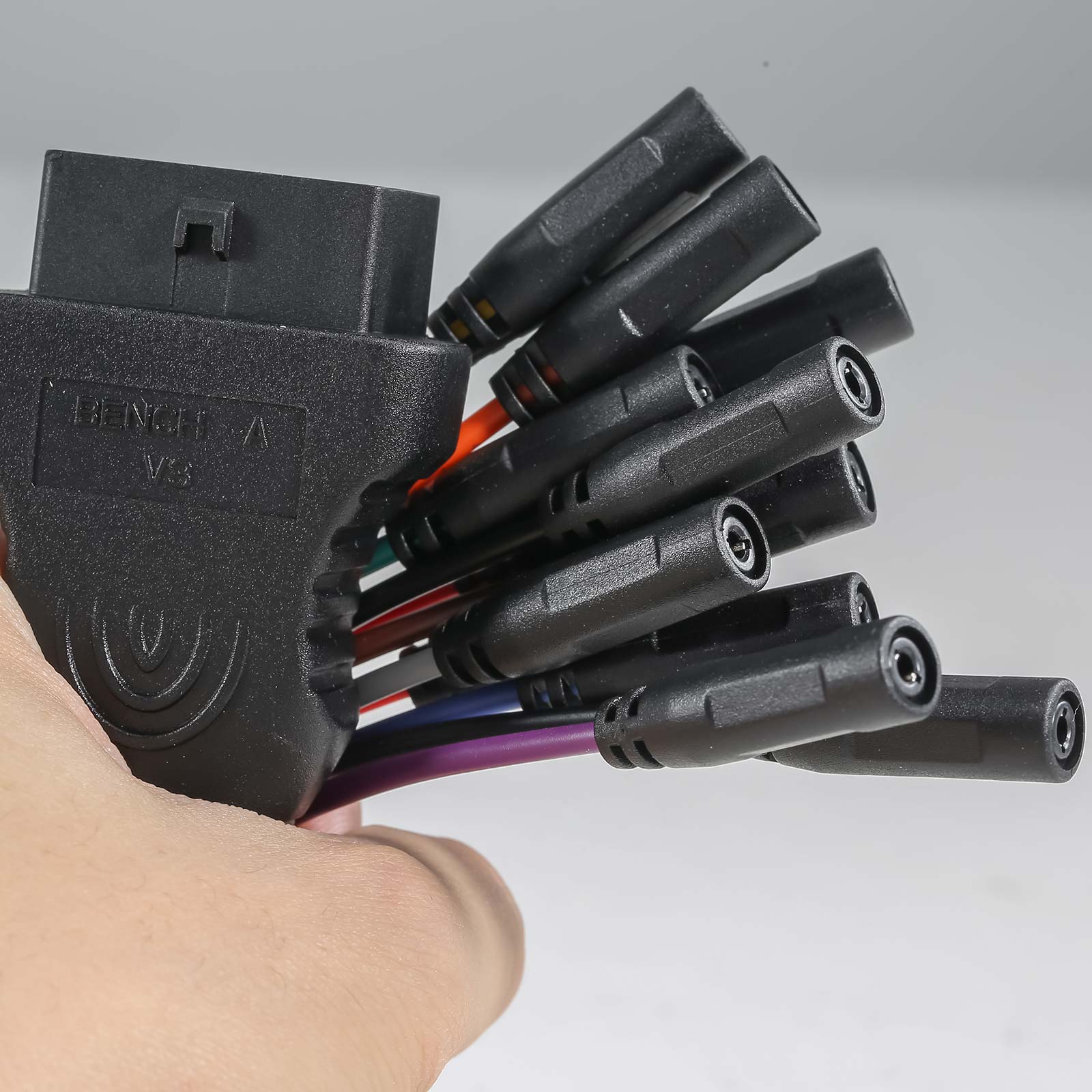

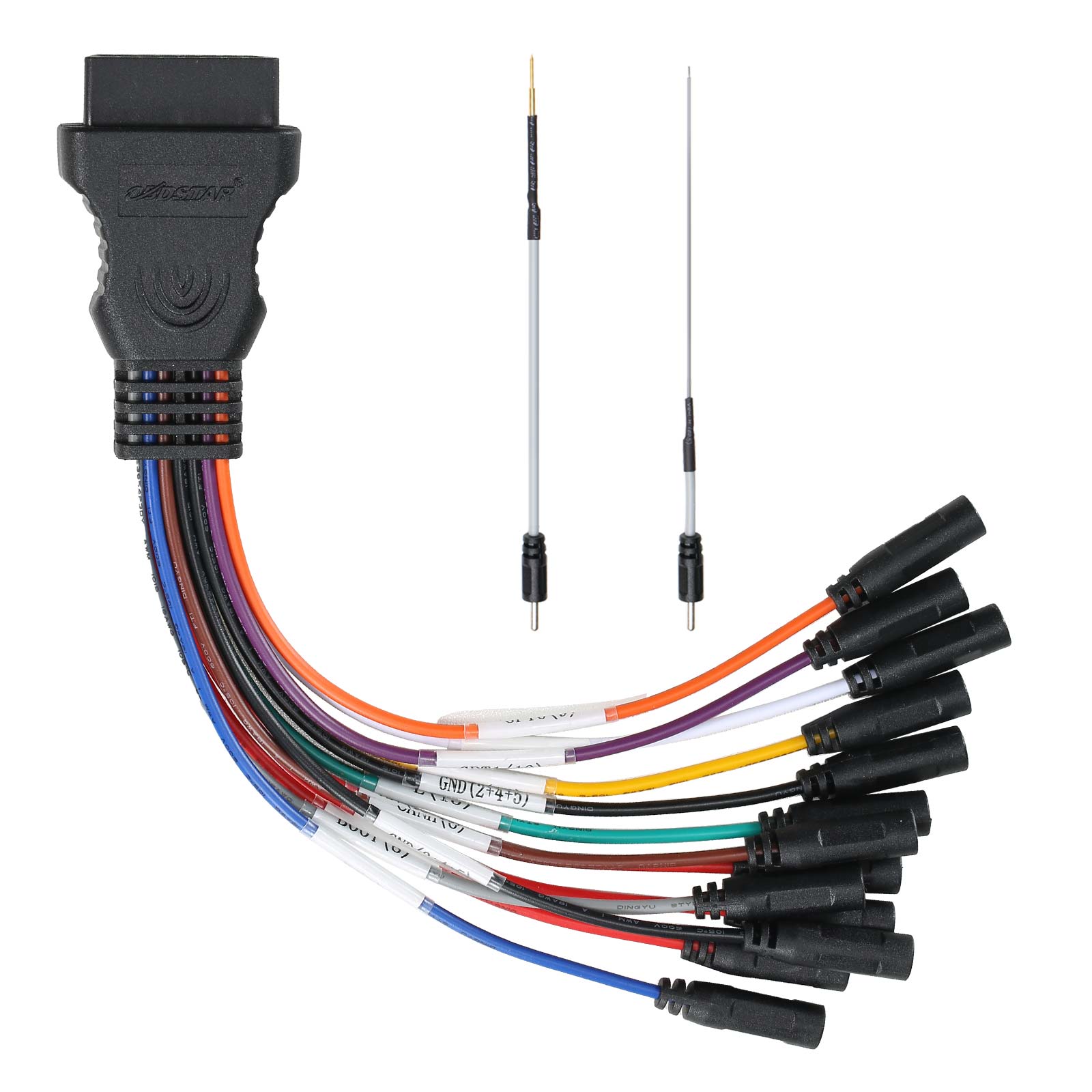

1pc x OBDSTAR ECU Bench Jumper

OBDSTAR MP001 package list


MP001 FAQ
Q: Can MP001 be connected to PC for independent use?
A: No, it need to use with OBDSTAR tools, currently support X300 Classic G3, DC706, MK70

Q: I had purchased some cables that match P002 and P003 before, can these cables be used for MP001?
A: Yes, TOYOTA 8A all key lost cable, FORD all key lost cable, HONDA motorcycle immo cable, YAMAHA/SUZUKI motorcycle programming cable, etc. can be used directly with MP001.
