(Second Hand 95% New) OBDSTAR ODO Master Odomaster Full Version Car & Motorcycle Odometer Correction Tool with Oil Reset

Product Description

OBDSTAR ODO Master Odomaster Full Version | Car & Motorcycle Odometer Correction Tool with Oil Reset & FCA 12+8 Adapter

Second Hand Not 100% New

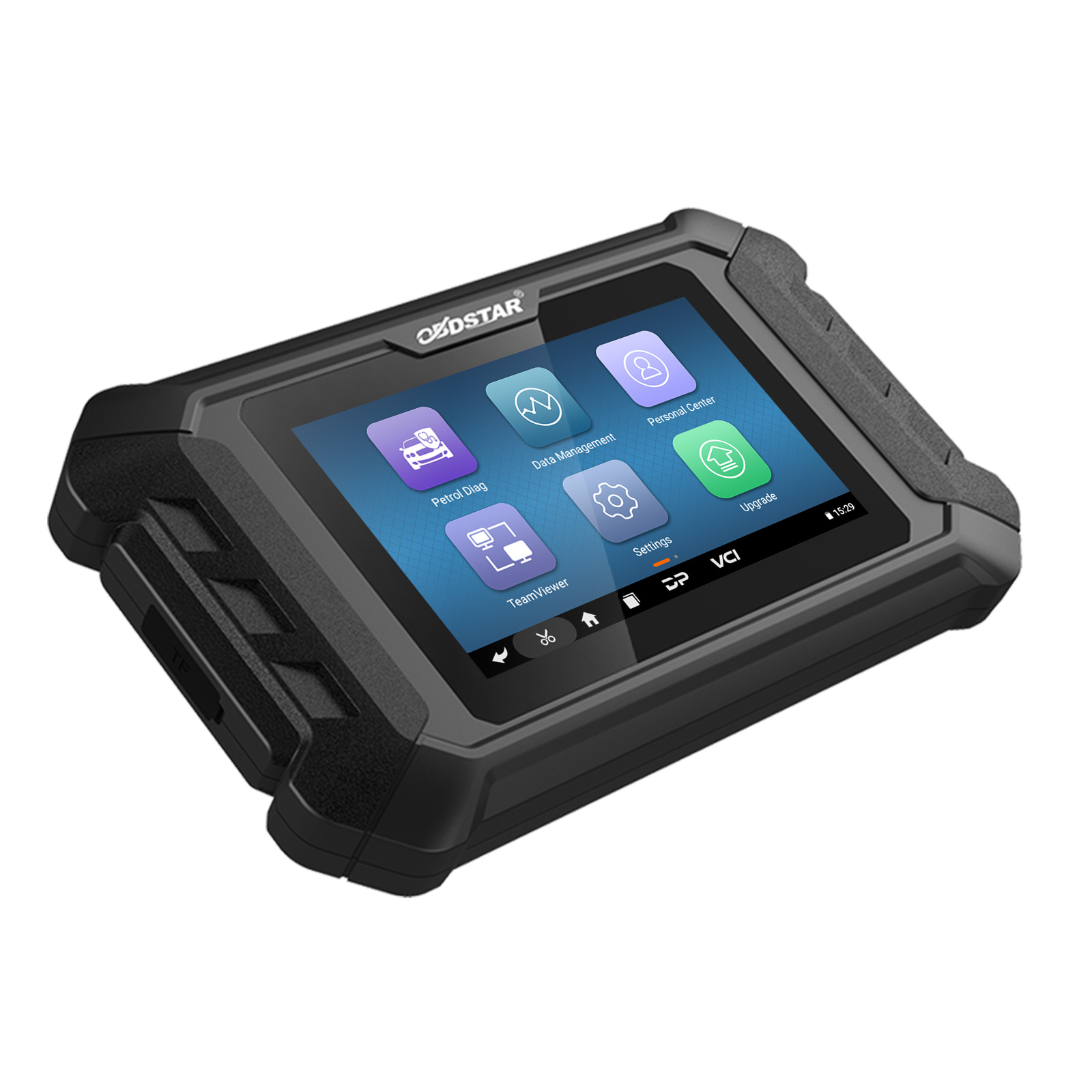

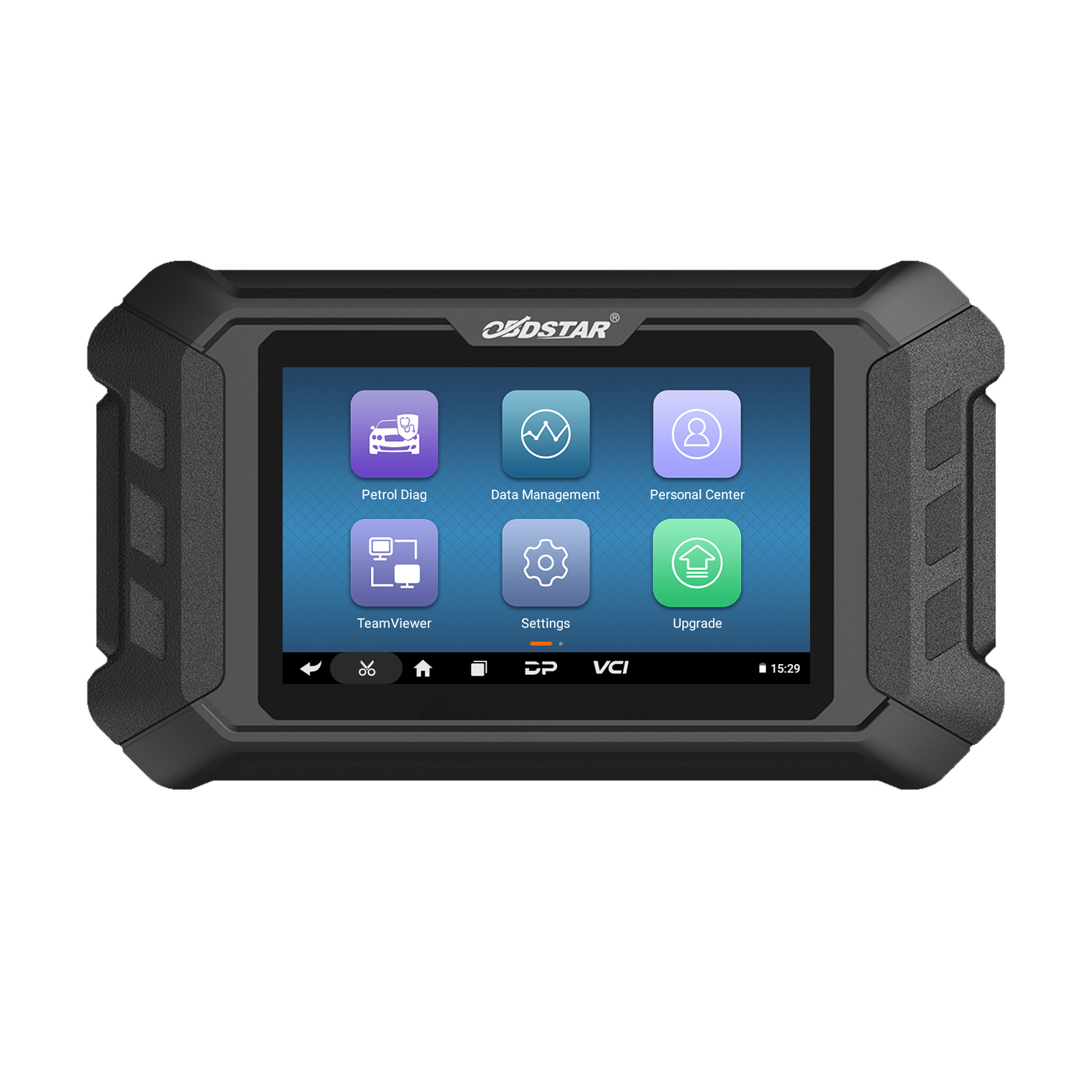

Odo Master is a new Android-based 5'' tablet specialized for cluster calibration and oil service reset.
The device inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use,
wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.

Highlights:
1. The update cycle is short and fast (updated every 2-3 days)
2. Free upgrade within one year, after 1 year update cost 119 USD
3. Some models can support 20/21/22/23 years of car
4. Multi-Language: English, Italian, Russian, German, Spanish, Polish, Portuguese, French (Default language is English, please pass us serial number to change)
5. Support 2019-S6J3XX, 2021-R7F701401 dashboard mileage correction(Need buy Toyota-30 cable).
6. Newly added BRP, DUCATI, Aprilia, KTM Motorcycle Cluster Calibration!(It's in ODO MASTER software.(Need to work together with M043 cable, M048, M037, M041 and M019 cable)
7. Get a free FCA 12+ 8 gateway adapter for 2018 and up Fiat/Chrysler/Alfa Romeo vehicles
8. Buy Airbag Reset Kit, get the same function as OBDSTAR P50.

Please Note:
1. Distributor code: 0086A002. Please follow the OBDSTAR Odomaster register manual to register it first before you use it. Distributor code: 0086A002
2. OBDSTAR update frequently, please follow the OBDSTAR ODO Master Update manual to update the machine to newest version before you test cars
4. Please check newest OBDSTAR ODO Master car list before shopping, newest updated on Feb 28th, 2025
5. Do not work on for BMW
⚠️ Disclaimer: Some functions of this product involve instrument repair, replacement, and legal calibration only. It is prohibited to use them for illegal mileage alteration or fraudulent purposes. The user is solely responsible for lawful usage.

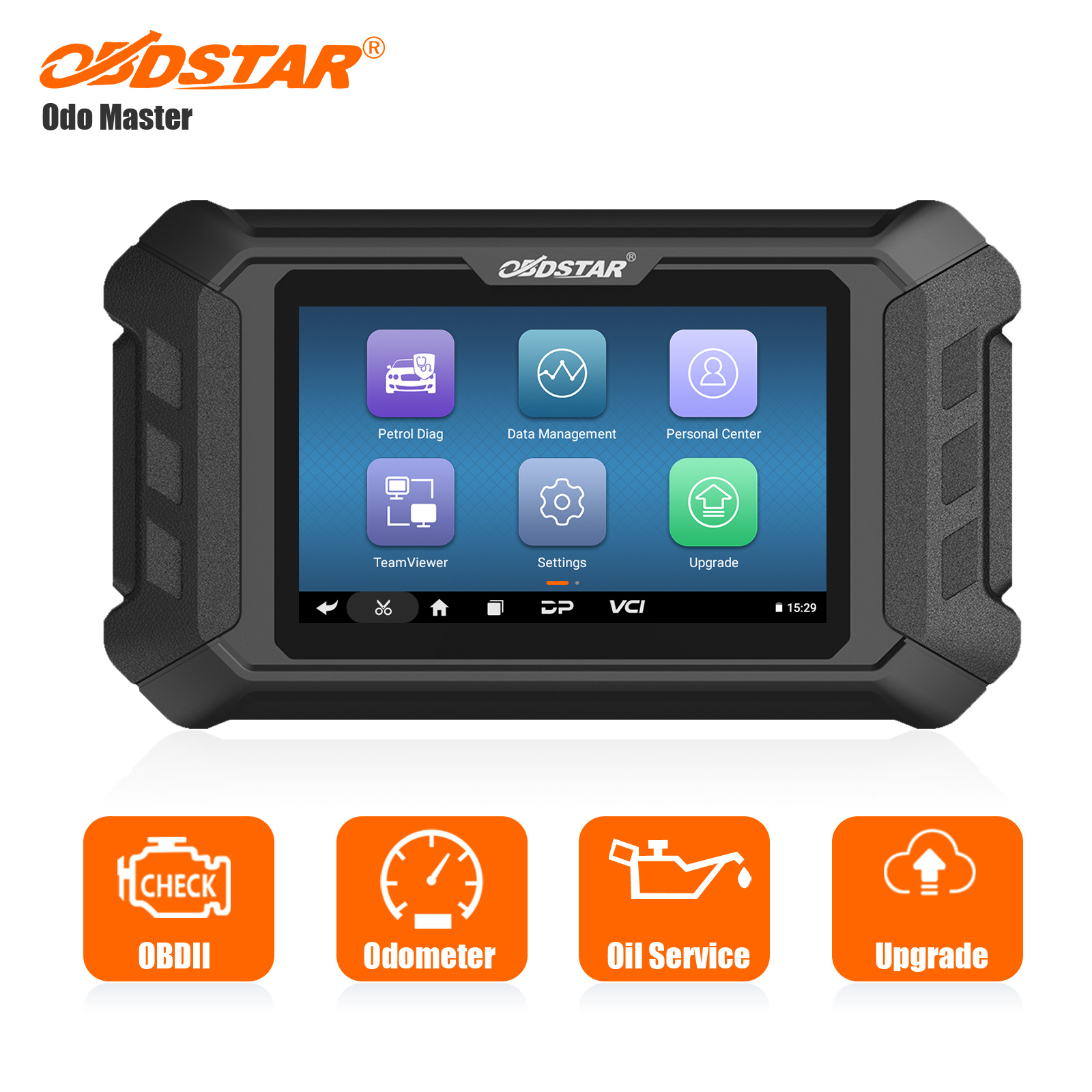

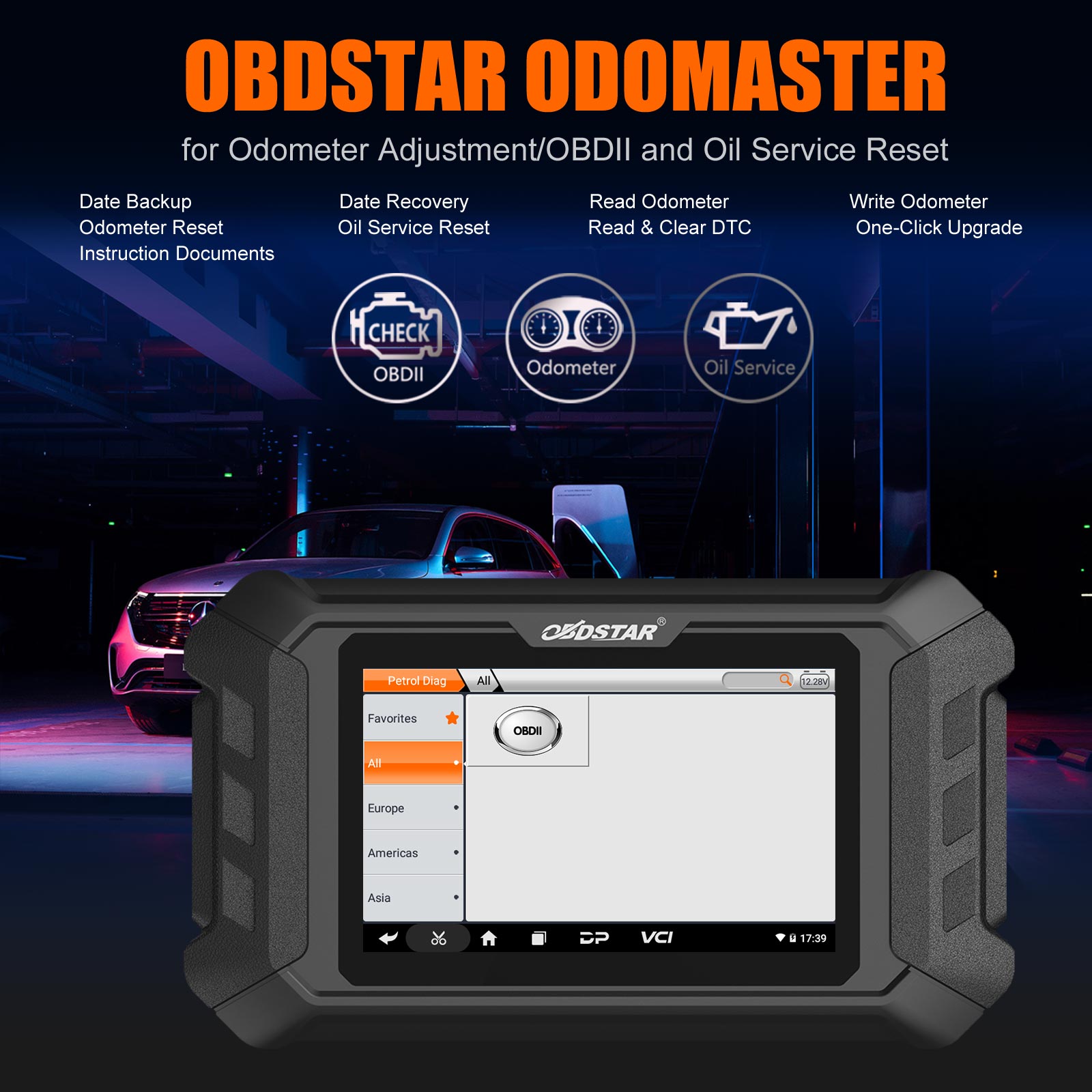

OBDSTAR ODO MASTER Functions:
1. Via OBDII
2. Date Backup
3. Date Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage


Latest Update:
TOYOTA V40.32 Update on 2025-02-21 (Some models need to be done by BENCH, which needP004 adaperand Toyota-30 cable to work with)：

• Add DAIHATSU ROCKY 2021 S6J3XXX Mileage Calibration function;
• Add LEXUS ES 2019- S6J3XXX Mileage Calibration function;
• Add LEXUS LS 2019- S6J3XXX Mileage Calibration function;
• Add LEXUS LX 600 2022- S6J3XXX Mileage Calibration function;
• Add LEXUS UX 2018- S6J3XXX Mileage Calibration function;
• Add TOYOTA 4RUNNER 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA ALLION 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA AVALON 2018- S6J3XXX Mileage Calibration function;
• Add TOYOTA CAMRY TYPE4(2018- S6J3XXX) Mileage Calibration function;
• Add TOYOTA COROLLA TYPE4(2018- S6J3XXX) Mileage Calibration function;
• Add TOYOTA CROWN KLUGER 2018- S6J3XXX Mileage Calibration function;
• Add TOYOTA GRANACE 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA HARRIER 2016- S6J3XXX Mileage Calibration function;
• Add TOYOTA HIACE 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA HIGHLANDER 2018- S6J3XXX Mileage Calibration function;
• Add TOYOTA LEVIN 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA LINSHANG 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA RAV4 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA SIENNA 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA VENZA 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA VIOS 2023- S6J3XXX Mileage Calibration function;
• Add TOYOTA WILDLANDER 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA YARIS CROSS 2019- S6J3XXX Mileage Calibration function;
• Add TOYOTA YARIS IV 2019- S6J3XXX Mileage Calibration function.

Ducati(Need to buy the M037 and M041 cable to work with them.）(2023-07-28)


KTM(Need to buy the M041 and M019 cable to work with them.）(2023-07-28)


BRP(Need to buy the M043 cable to work with it.）(2023-03-15)
ADD BOMBARDIER USA CAN_AM DASHBOARD 70F3554 2019

Toyota (2023-02-17)
Add TOYOTA CAMRY 2018 XV70 VDO R7F701406

Honda(2022-05-24) (As for Honda, Odo master worsk on the following models only)


ATTENTION:
As for 2018 and up FIAT/ CHRYSLER/ ALFA ROMEO vehicles, please work together with the FCA 12+8 adapter, otherwise, it won't work.
Do not work on BMW. (Please pay attention to check the car list, if you are not sure, please contact us.)
Please register the device before using.
Instructions for registration.
As for Benz, if the device says " version is not supported ", then it means the dashboard model is not supported, there is no solution.
"-" in the car list doesn't mean ``up to date. For example, Crown; Victoria (2005 -) means the device can work with a 2005 for sure, you can try with 2006 model, but if it fails, there is no solution.

OBDSTAR ODO Master is a new Android based 5'' tablet, specialized for cluster calibration. It inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.

Vehicle Coverage:

Operation System	Android 5.1.1
CPU	RK3128 Quad-Core ARM Cortex A7 1.2GHz
Battery	2600mA, rechargeable polymer lithium battery
Extension Memory Card	32G Micro SD (TF) card supported
Memory Capacity	16GB
Storage Capacity	32GB
LCD	5.0 inch
LCD Resolution	8000*600
Touch Screen	Capacitive touch screen
Camera	5 mega rear view camera
Wi-Fi	supported
Working Temperature	-20℃ ~ 55℃（14℉ ~ 131℉）
Storage Temperature	-20℃ ~ 70℃（-4℉ ~ 158℉）
Dimension	140mm*89*mm*18mm
Weight	About 700g

Odo Master vs. X300M Software Comparison Data

Odo Master	X300M
FORD	FIESTA	2017-	2013-
	FOCUS	2019	2013-
	TRANSIT	√	×
	KA	2018-	2015-
GM	COLORADO	2018-	2005-
	CRUZE	2017-	2010-
	ESCALADE	2018-	2015-
	XT6	2019	/
	YUKON	2017-	2014-
CHRYSLER	CHEROKEE	2018-	2015
	RAM	2018-	2011-
	DURANGO	2018-	2014-
LANDROVER	DISSCOVERY 4	2015-	/
	RANGE ROVER SPORT	2017-	2014
VW	MQB  2012-2014.06	√	×
	MQB  2014.06-	√	√
RENAULT	CAPTUR	2017-	/
	TRAFIC IV	2017-	/
KIA CEED	24C16	√	√
	D70F3423	√	√
	D70F3XXX	√	×
	D70F3421	√	×
	D70F35XX	√	×
	NEC	√	×
	NEC+24C16	√	×
KIA Optima	24C16	√	√
	D70F3536	√	√
	D70F3421	√	×
	D70F352X	√	×
	D70F35XX	√	×
	NEC	√	×
	NEC+24C16	√	×
NISSAN	ALTIMA  2013	√	√
	KICKS  2017-	√	×
MITSUBISHI	OUTLANDER	√	×
	TRITON 2015-	√	×

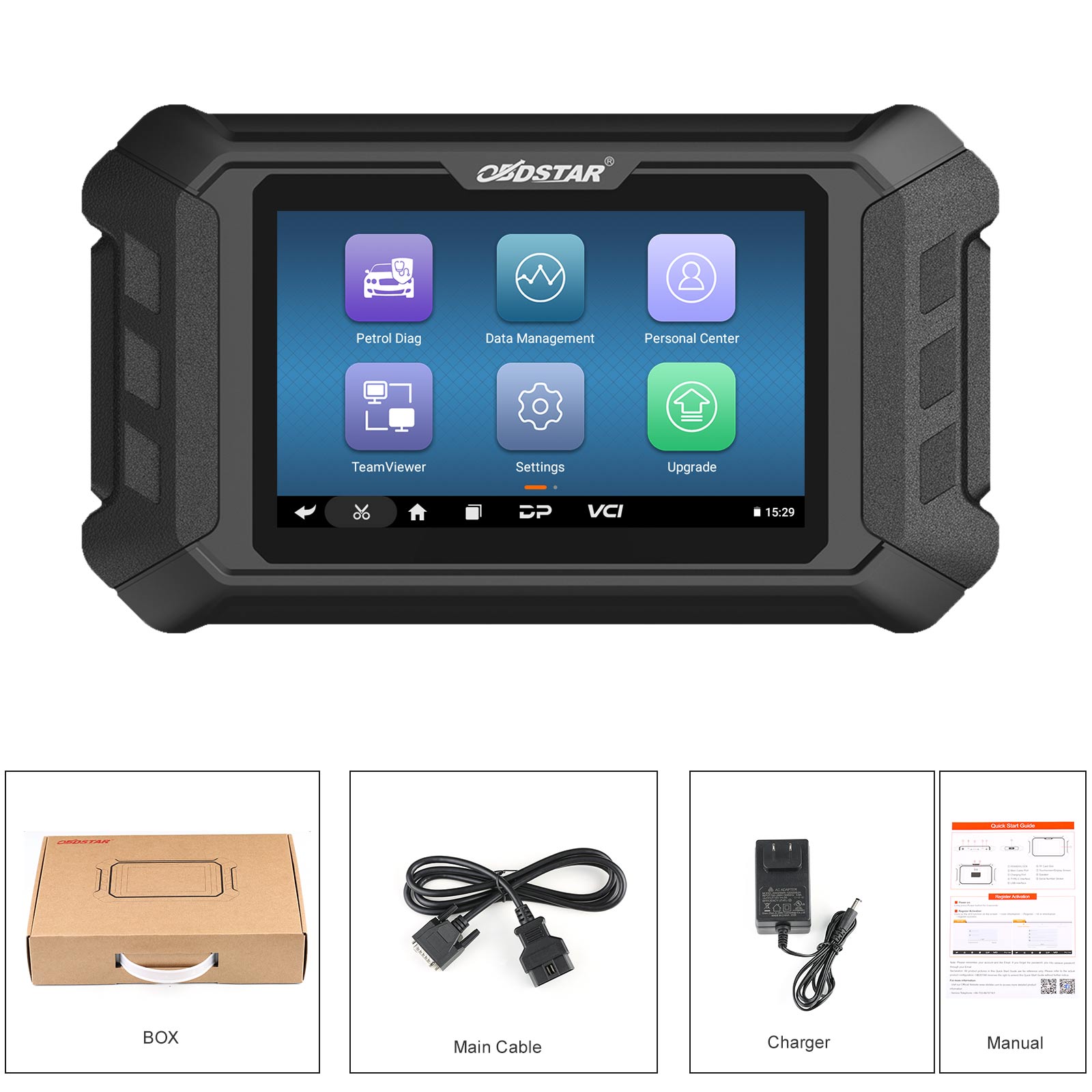

Package includes:
1PC x Main Unit
1PC x Main Cable
1PC x Charger
1PC x Configuration List/Certificate/Quick Start Guide Fold
1PC x Packing box


---
