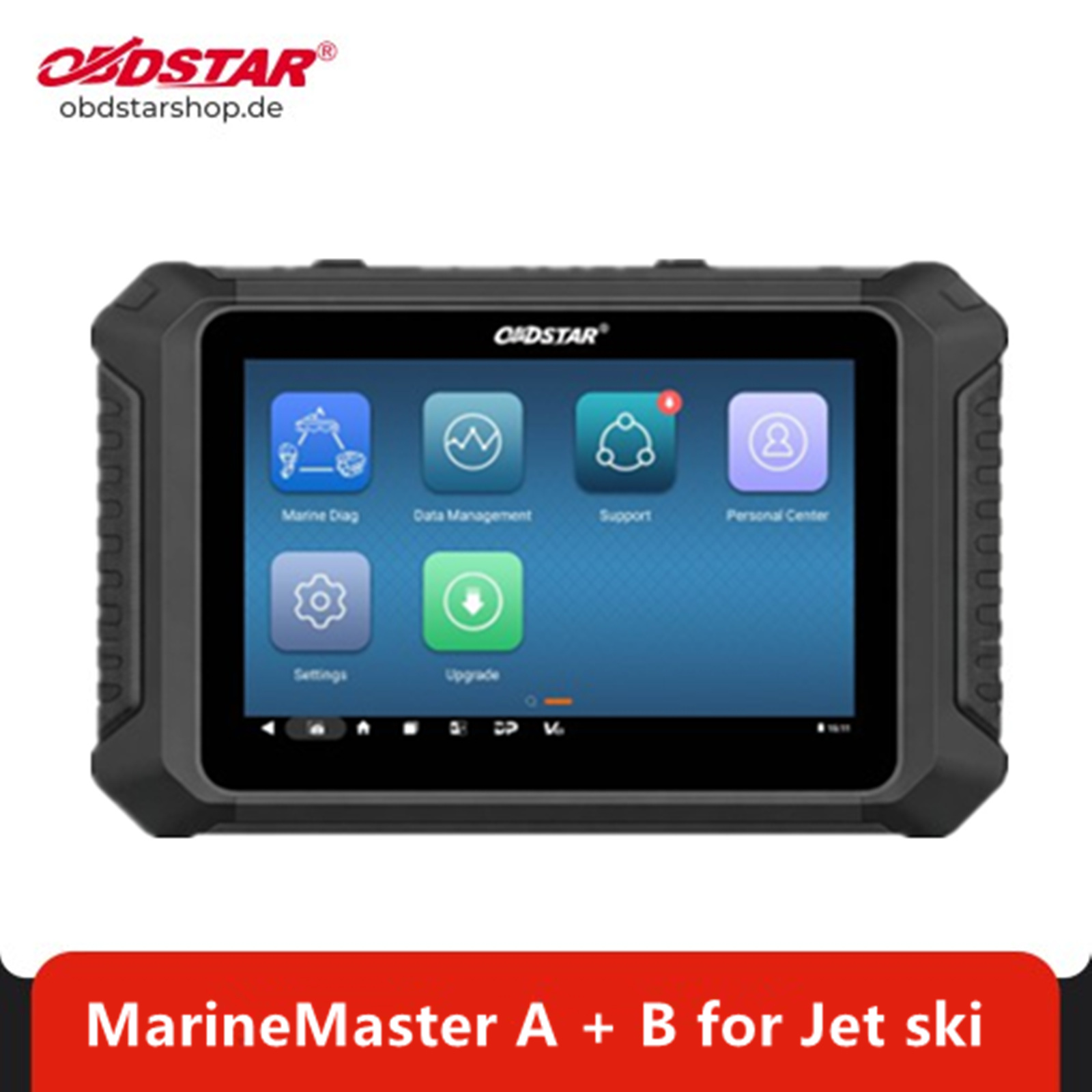

EU-Schiff OBDSTAR MarineMaster A + B for Jet ski Outboard Read/Clear Code, Data Flow, Freeze Frames, Action Test

Item No. SP627-B In Stock. History 6 sold.
0 rating
|
Latest price: €1,899.00
Buy Now: €1,711.00
EUR 1,711.00 GBP 1,483.78 USD 1,899.21
10% off
2 MarineMaster: A + B for Jet ski OBDSTAR MarineMaster A + B for Jet ski Outboard Read/Clear Code, Data Flow, Freeze Frames, Action Test
OBDSTAR Top-Tools
2026 NEW ECU MASTER
Better Offer or Questions Pleaese Contact WhatsApp: +86 15223201143
E-Mail: sales@OBDSTARshop.de
Shipping:
Free Shipping Express Shipping ServiceEstimated delivery time: 5-7 working days.See details »
Weight:
6.2KG ( 13.67LB )
Package:
51.5cm*40cm*17cm ( Inch: 20.28*15.75*6.69 )
Returns:
Return for refund within 30 days,buyer pays return shipping. Read details »

Product Description

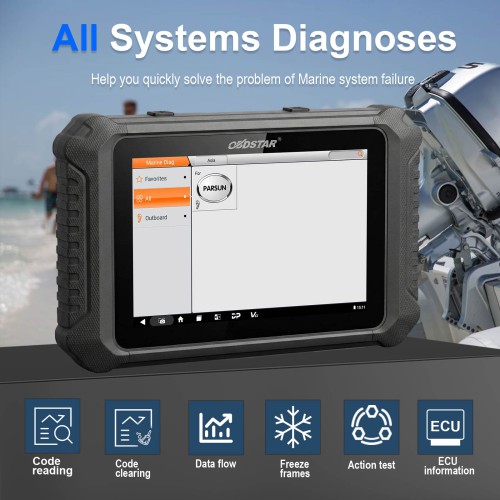

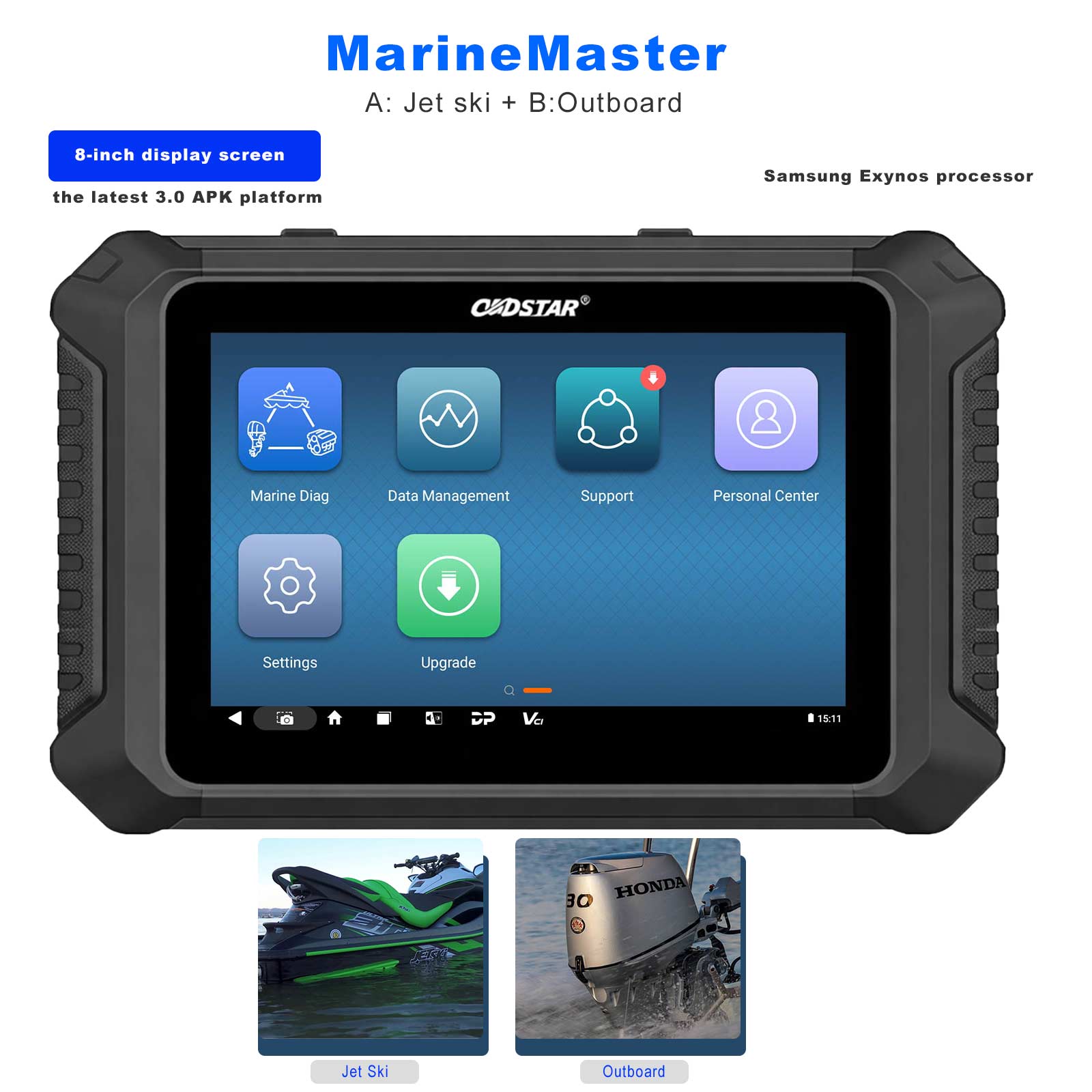

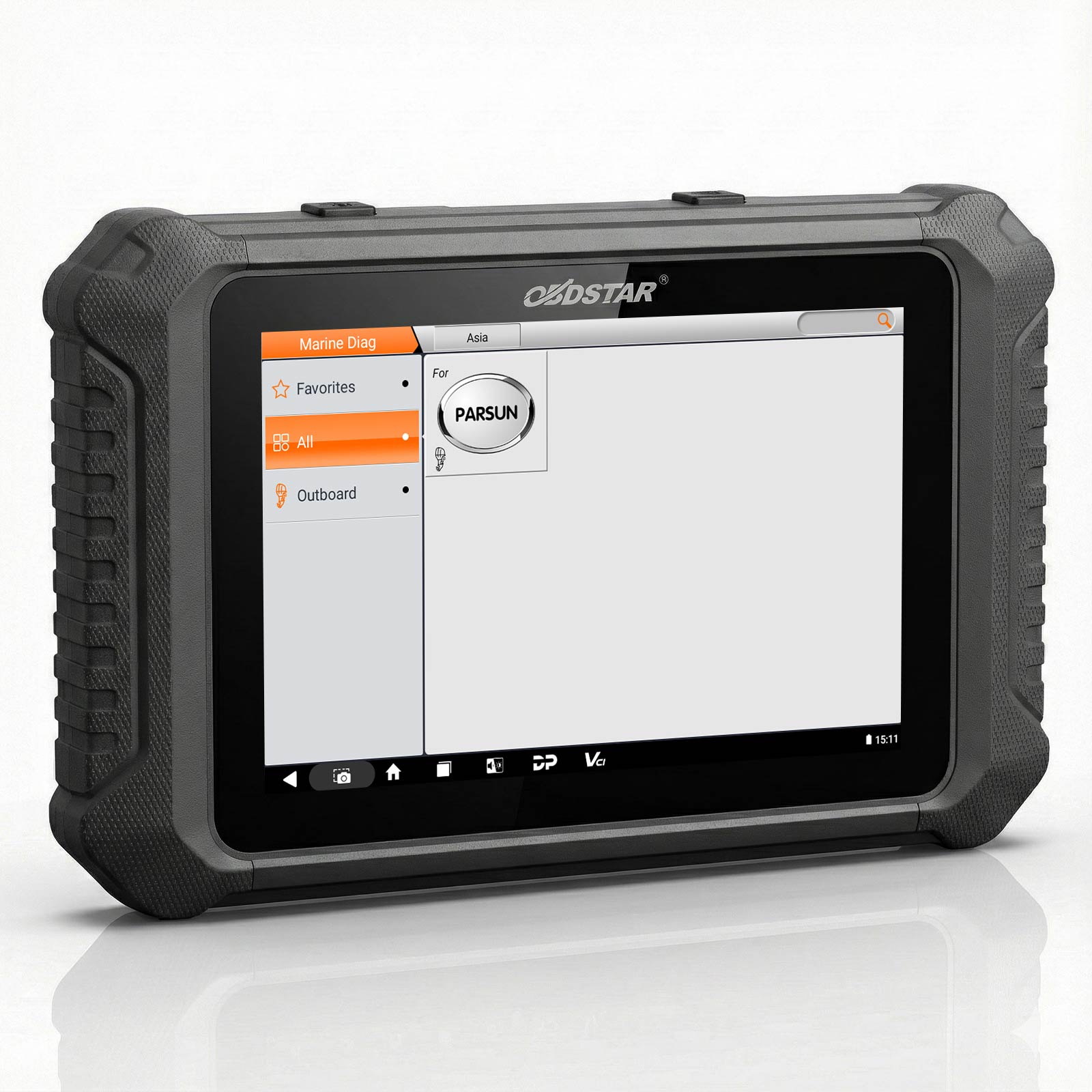

MarineMaster is OBDSTAR's new generation device for marine (jet ski/ outboard) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

OBDSTAR MarineMaster A+ B for Jet ski Outboard Read/Clear Code, Data Flow, Freeze Frames, Action Test


MarineMaster is OBDSTAR's new generation device for marine (jet ski/ outboard) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth.

MarineMaster adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The MarineMaster marine scanner, with its fast upgrade performance and built-in help materials, is a good helper for marine maintenance engineers!


Please check the OBDSTAR MarineMaster vehicle model list  before purchasing
MARINEMASTER+User+Manual

OBDSTAR MarineMaster A Functions
1. Android 11 operating system with one-click OTA (Over-The-Air) updates ;

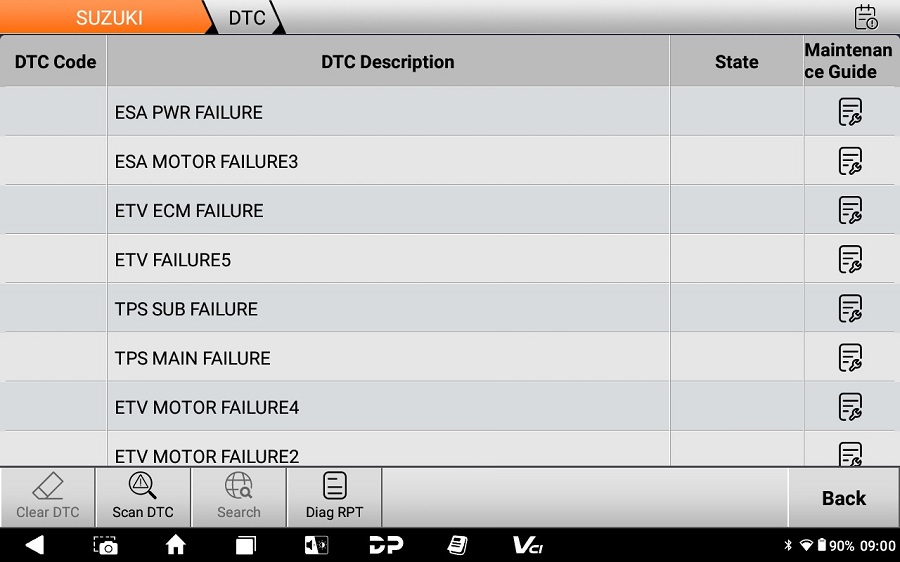

2. Provide complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, read working hours, Helm Setup, etc;
3. Record and play back real-time flow, quickly and accurately locate sensor and component faults;
4. Wi-Fi connection to the internet, one-click software upgrade;
5. One-click remote function, OBDSTAR technical staff remote assistance;
6. Built-in screen recording and wireless screen mirroring capabilities.

Advanced Functions

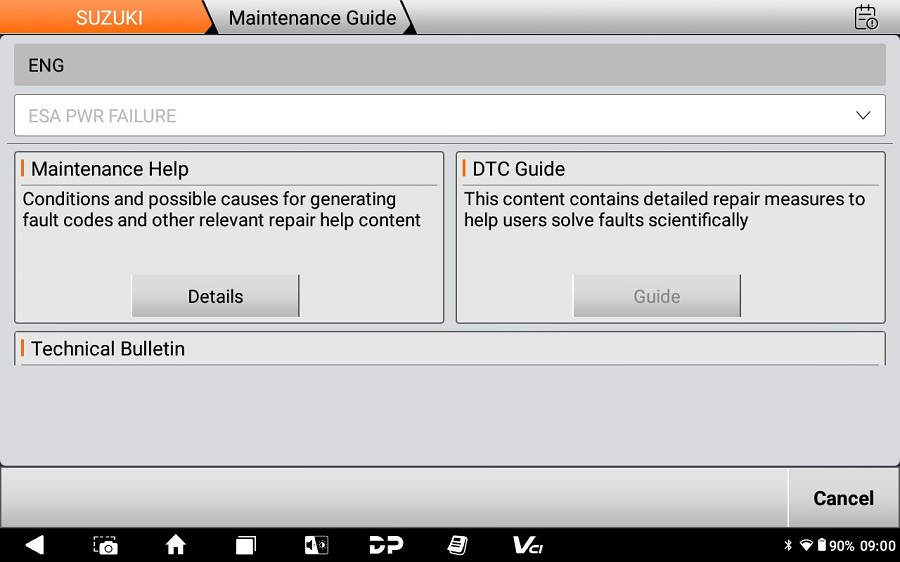

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with MarineMaster to make marine diagnosis more accurately and efficiently (some functions are only available for MarineMaster users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyze faults;
4. Supports Auto Scan, BCM Simulator, Instance Setting, Maintenance Setting, Remote Control Reset, System Calibration, Torque Adjustment and other functions...

Supported Brands
AIQIDI, CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, EVINRUDE, FLAGSHIP, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HIDEA, HONDA, HYUNDAI SEASALL, ILMOR, INDMAR, JOHNSON, KAWASAKI, KODIAK MARINE, KOHLER, LOMBARDINI MARINE, MALIBU, MAN MARINE, MARINER, MARINE POWER, MERCRUISER, MERCURY, MERCURY DIESEL, MTU, PARSUN, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SEA-DOO(BRP), SEANOVO, SELVA MARINE, SEVEN MARINE, SISU, STEYR MOTORS, SUZUKI, TOHATSU, TOYOTA MARINE, TURNKEY, VM MOTORI, VOLKSWAGEN, VOLVO PENTA, YAMAHA, YANMAR...

More functions are under development...


It has the below configuration:
A: Jet ski    B: Outboard

MarineMaster A+B: Jet ski, Outboard,

More details, please check the software configurations in 'Specifications' and the coverages in 'Function Manual'.

Function Display-(From OBDSTAR Mobile App)

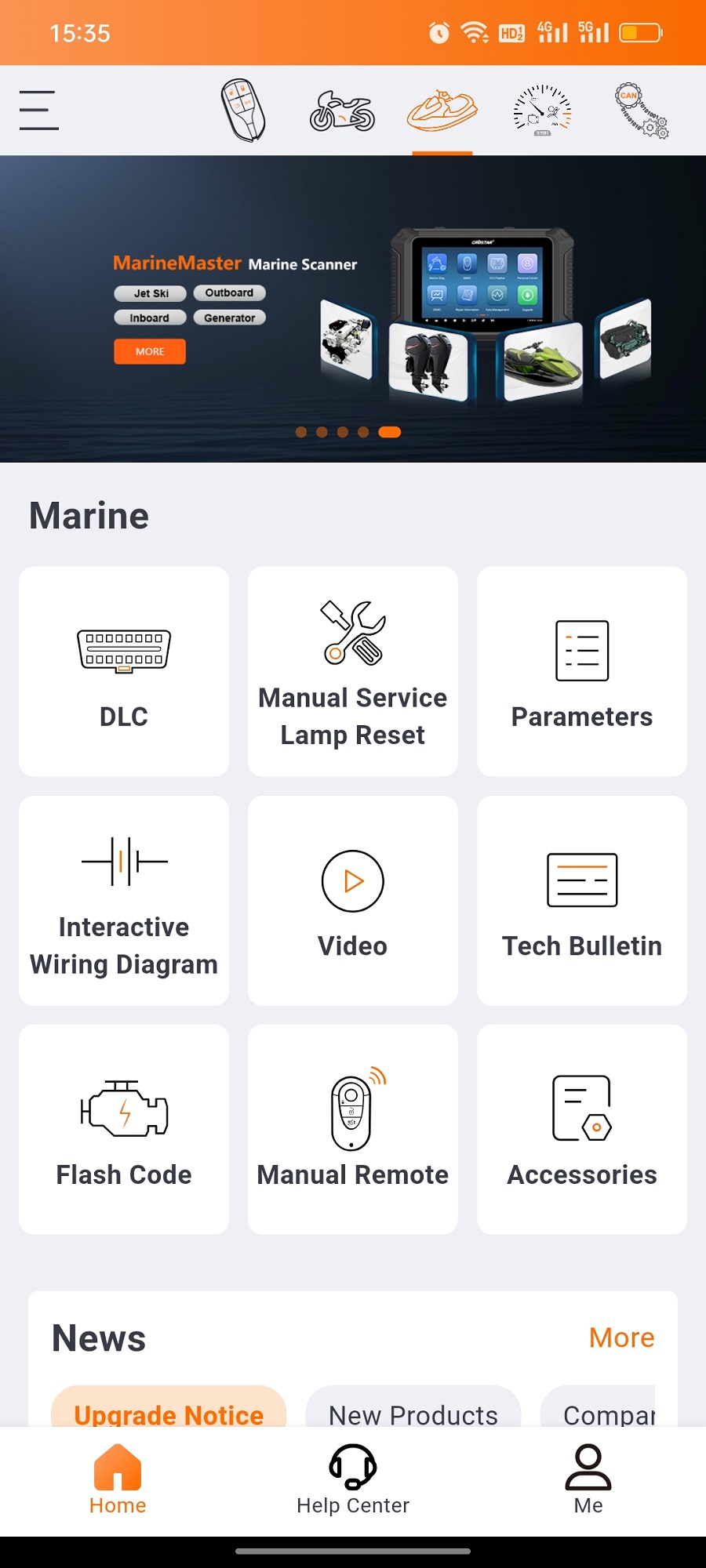

1) Main Page

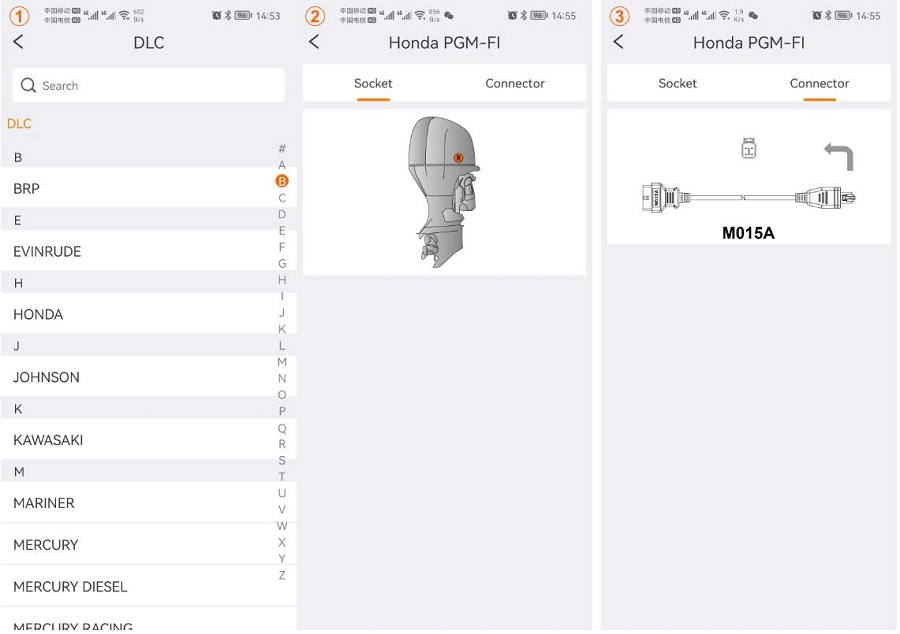

2) Diag Socket/Diag Connector Location


Function Display-(From MarineMaster)

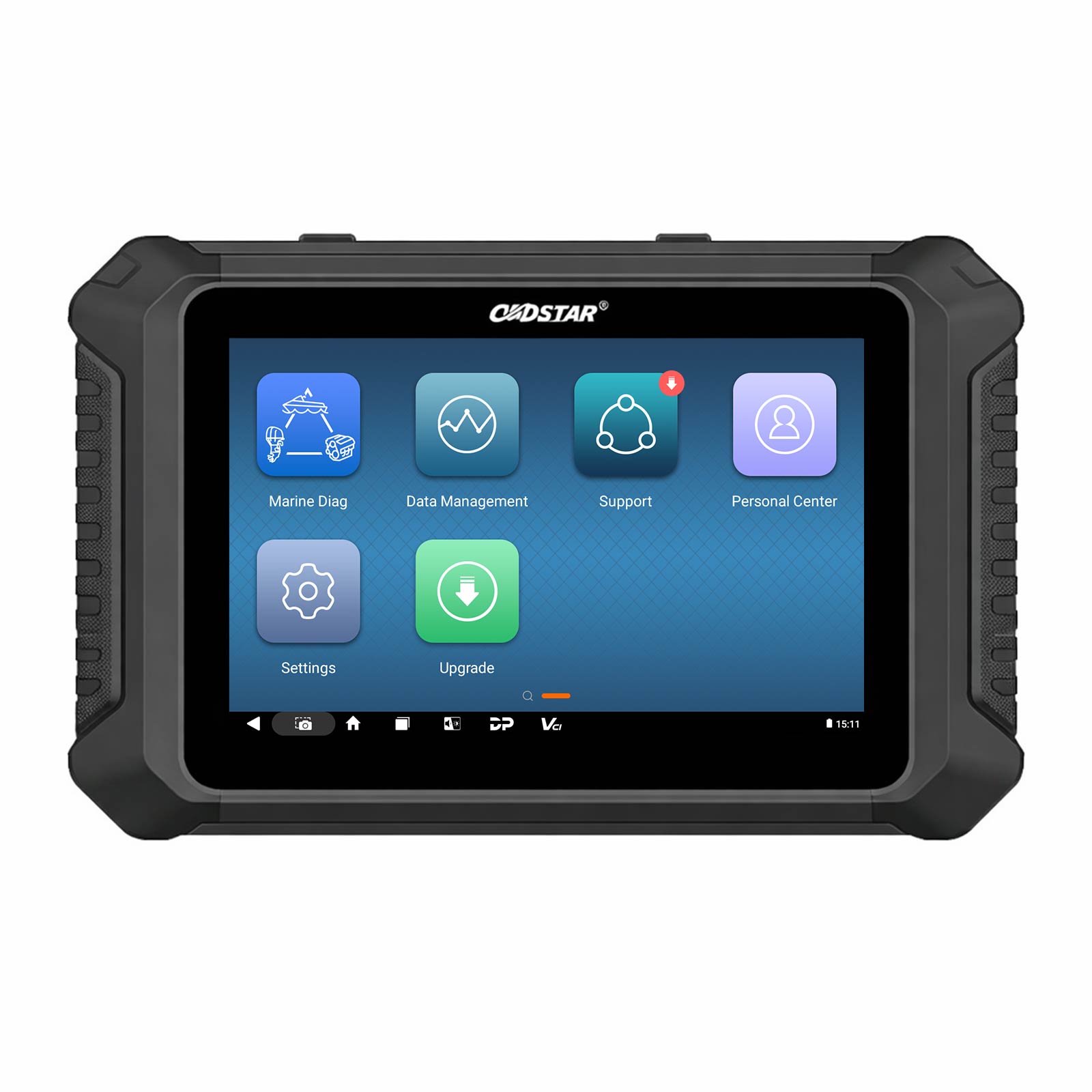

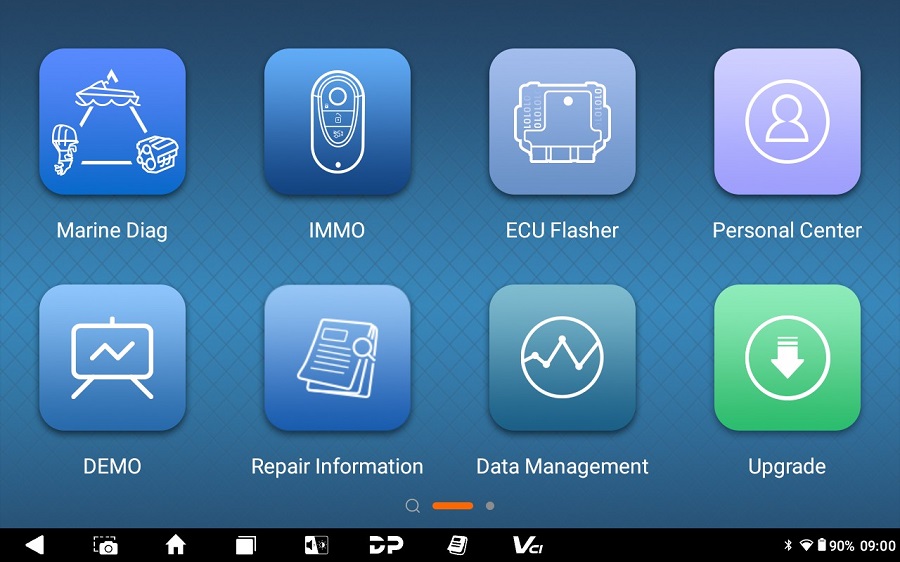

1) Main Page

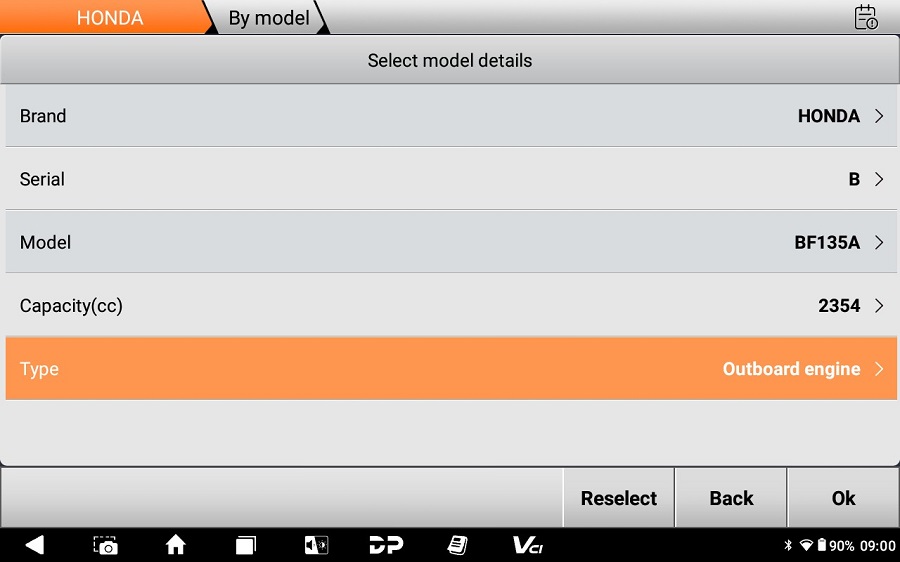

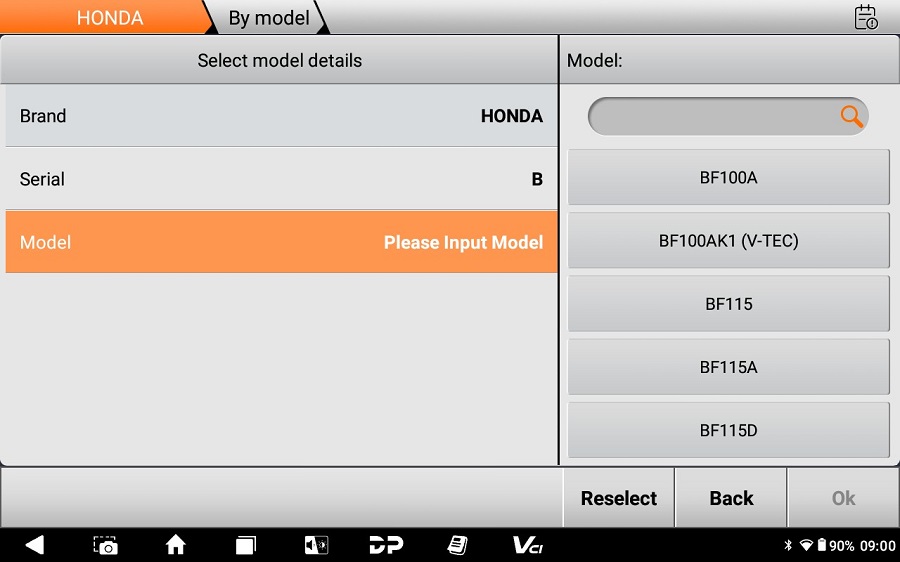

2) Menu Selection



3) Function Menu

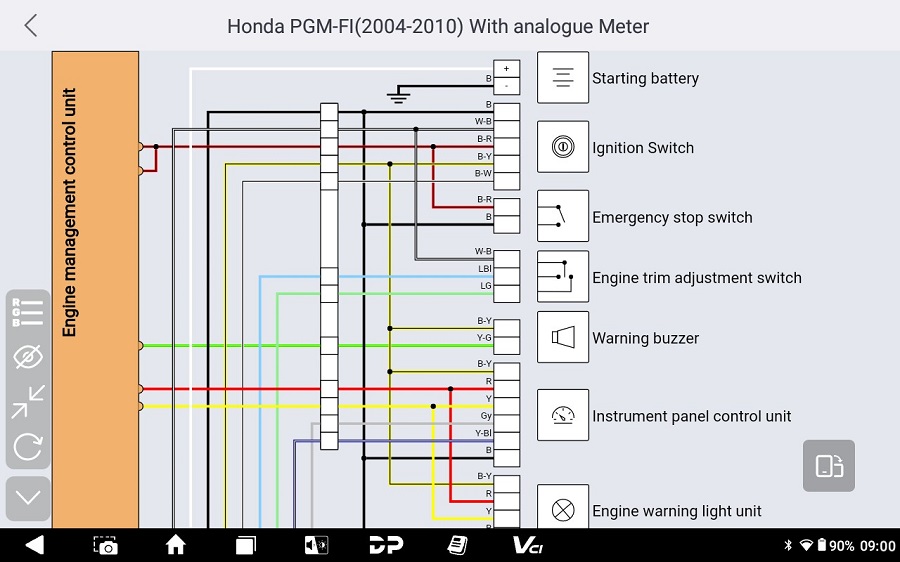

4) Interactive Circuit Diagram

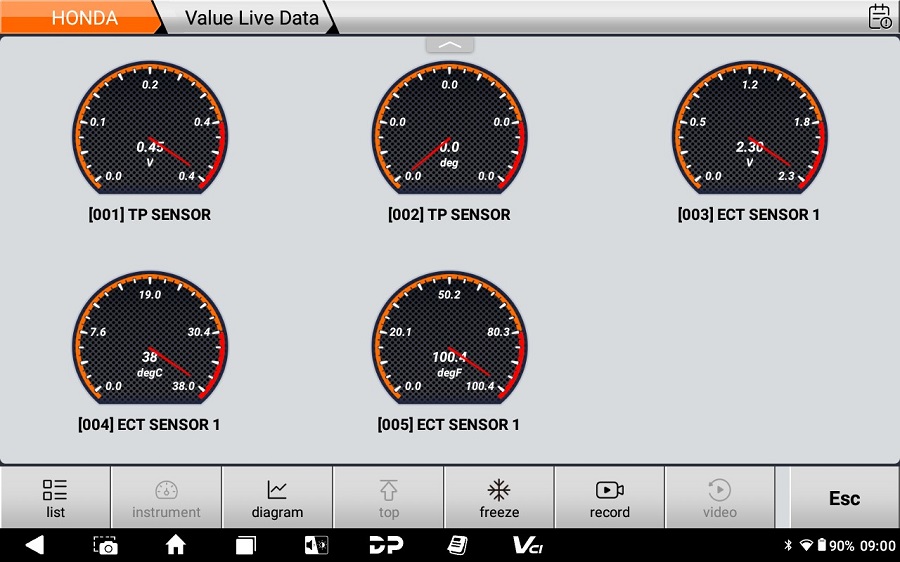

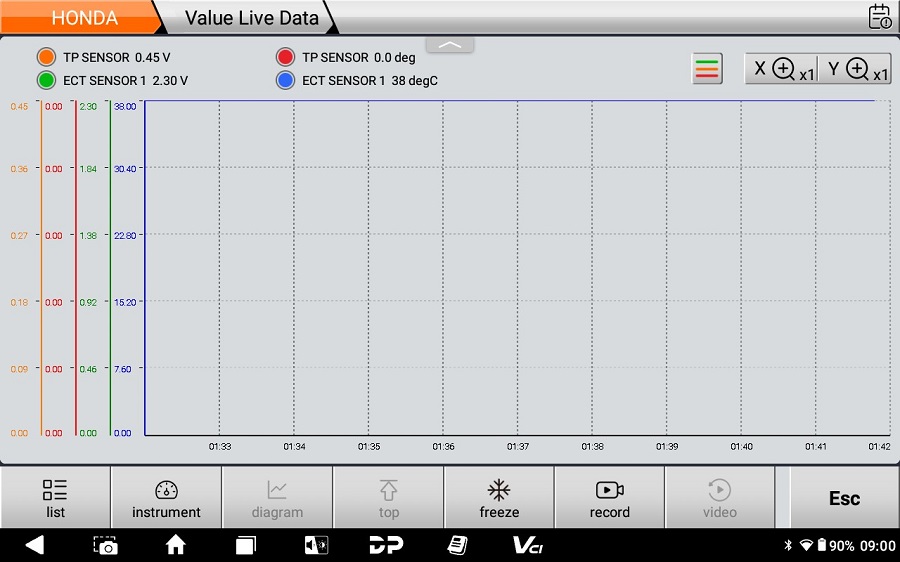

5) Data Flow Text/Waveform Diagram/Instrument Diagram




6) Special Function-BRP


Product Specifications:

Operation system: Android 11
OTA:√
Screen recording:√
Wireless screen casting:√
CPU: Quad-core 64-bit Cortex-A55 2.0GHZ
Battery: 9000mA
Storage capacity: 4+64GB
LCD: 8.0 inch fully laminated sunlight readable screen
LCD resolution: 1280*800
Camera: Rear camera 800W pixels, auto-focus
Bluetooth: Bluetooth 5.0

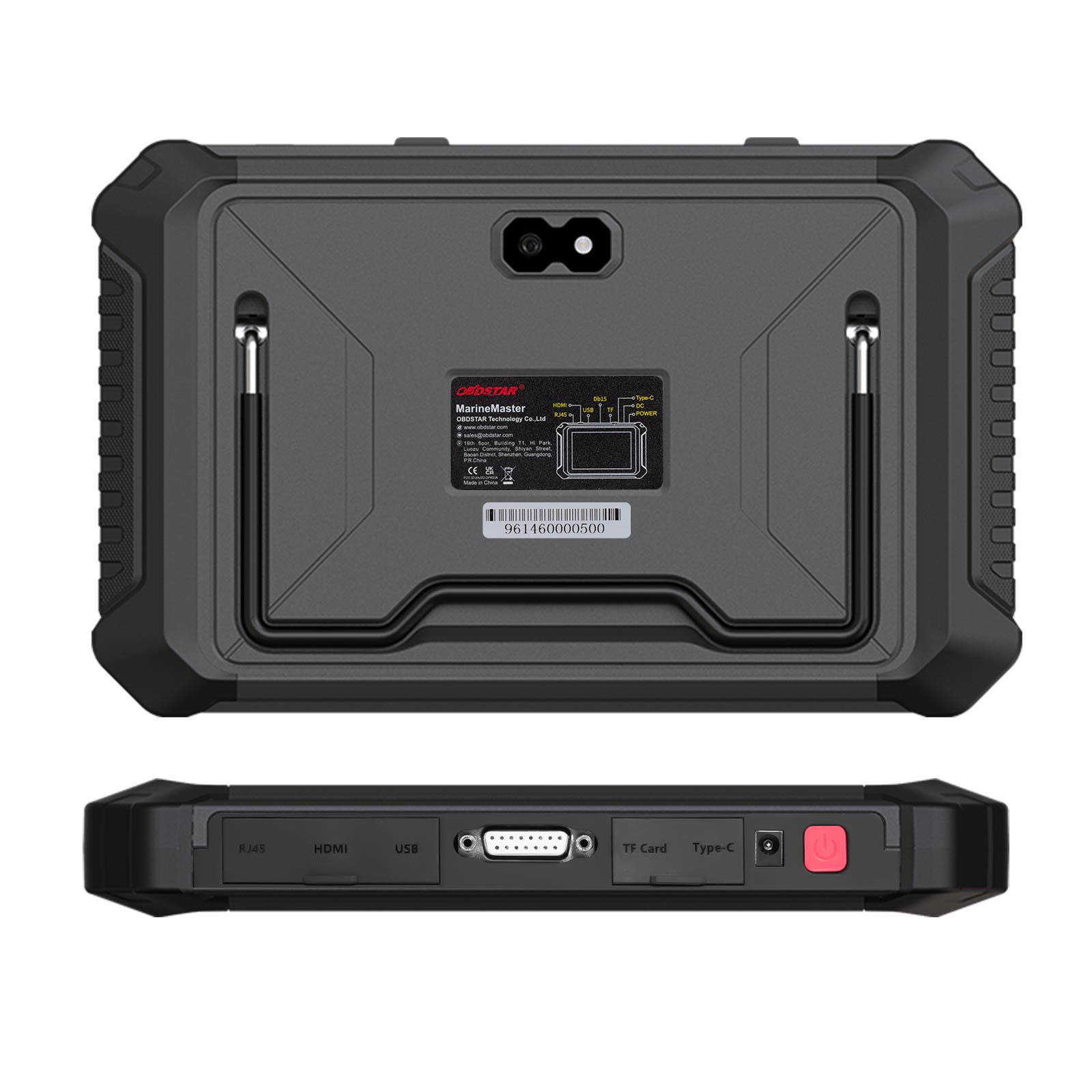

External interfaces: RJ-45√  HDMI√  TYPE-A,TYPE-C
WiFi: Dual-band 2.4G/5GHZ
VCI: CANFD built in√
        DOlP built in√
        Low Speed(Fault Tolerant) CAN built in√
        All other common protocol types

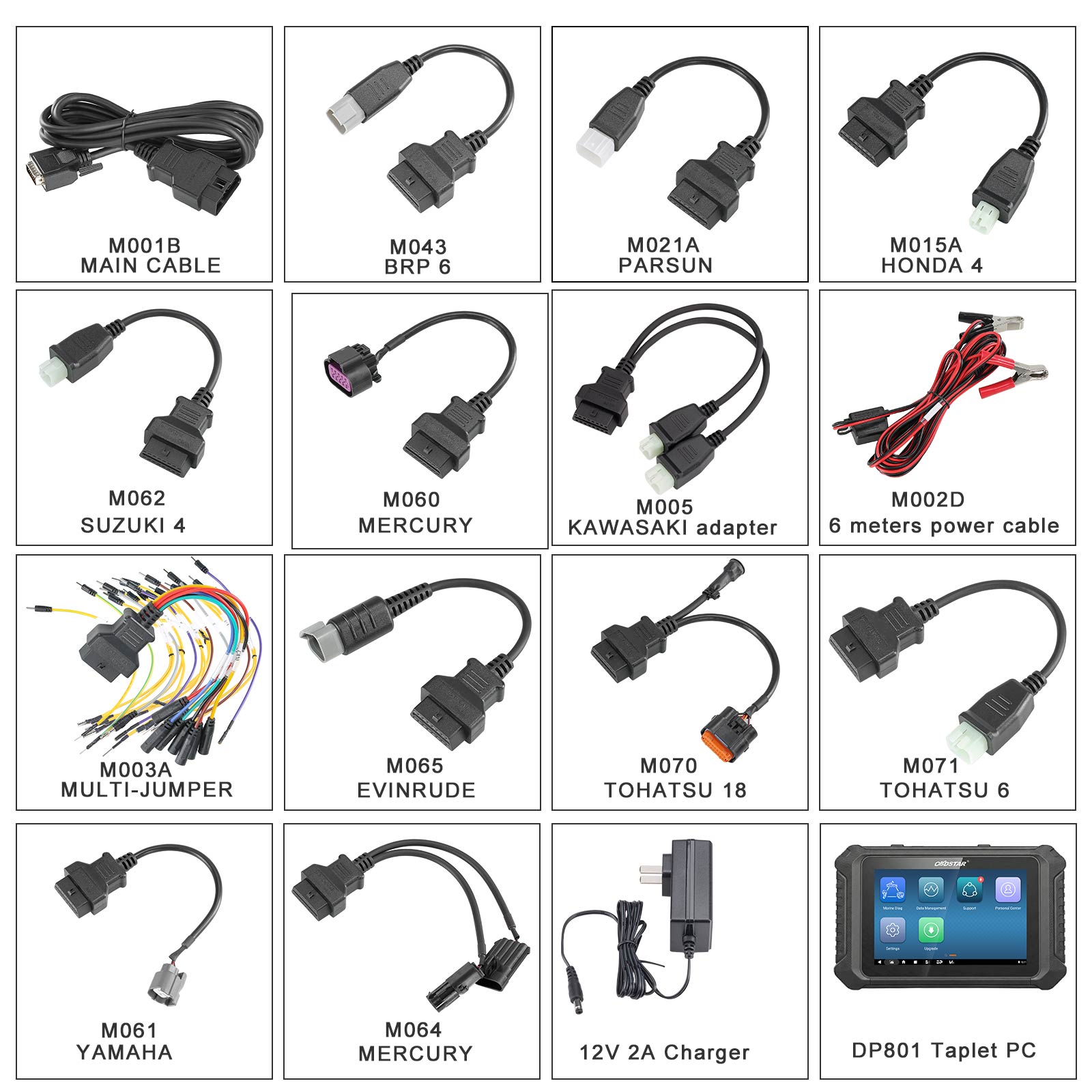

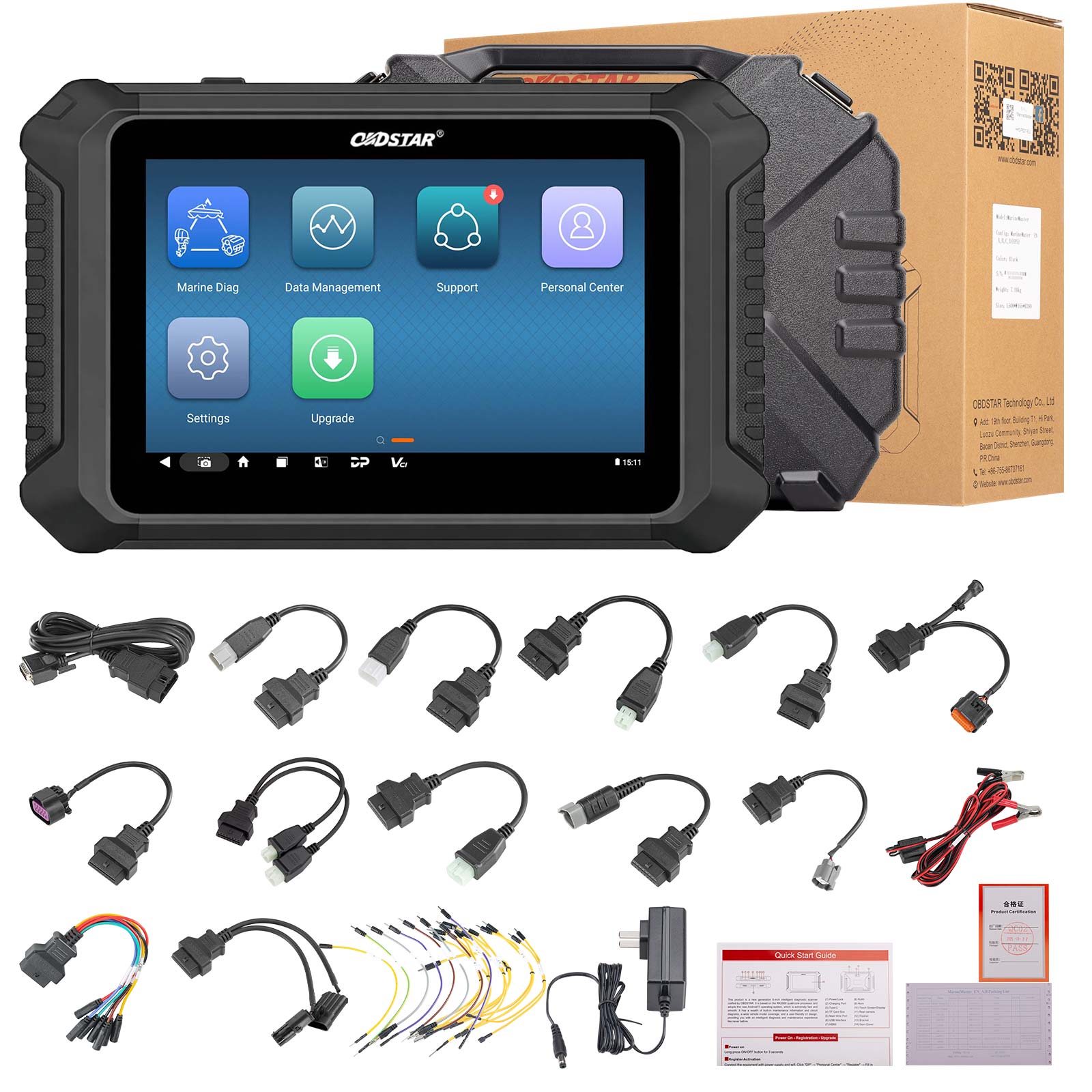

Package includes:

1pc x tablet
1pc x 12V2A charger adapter
1pc x M001B main cable
1pc x M002D 6 meters power cable
1pc x M003A Multi-functional jumper
1pc x M005 KAWASAKI adapter
1pc x M015A Honda adapter
1pc x M021A Parsun adapter
1pc x M043 BRP adapter
1pc x M060 Mercury adapter
1pc x M061 Yamaha adapter
1pc x M062 Suzuki adapter
1pc x M064 Mercury adapter
1pc x M065 Evinrude adapter
1pc x M070 Tohatsu adapter
1pc x M071 Tohatsu adapter


Über die Lieferung

Versand aus EU-Lager (steuerfrei): 3–5 Werktage. Wir haben beliebte Artikel in unserem EU-Lager (Tschechien/Belgien) vorrätig, was für Sie bequemer ist. Steuerfrei, schneller Versand und günstigerer Preis.
Yanwen Express (ohne Steuern): 8–12 Werktage, wir zahlen die Steuern im Voraus, sodass Kunden für die meisten europäischen Länder keine Steuern zahlen müssen. Aufgrund der hohen EU-Zölle versenden wir standardmäßig mit Yanwen Express (für Artikel, die nicht in der EU vorrätig sind). Wenn Kunden die schnellere Versandart DHL/Fedex wünschen und bereit sind, die hohen Steuern zu zahlen, hinterlassen Sie uns bitte nach der Bestellung rechtzeitig eine Nachricht.
DHL/UPS/Fedex: 3-5 Werktage. Um Ihnen bei der Zollabfertigung zu helfen, geben wir auf der Rechnung einen niedrigeren Preis an. Bei Adressen in abgelegenen Gebieten muss der Kunde eine Fernfrachtgebühr entrichten, andernfalls versenden wir per Normalpost oder Yanwen Express.

Hinweis:

1. Alle Artikel werden an die PAYPAL-Lieferadresse versandt, um die Rechte von Käufer und Verkäufer zu schützen. Bitte überprüfen Sie Ihre Adresse bei PAYPAL, bevor Sie den Kauf tätigen.
2. Ihre Bestellung wird in der Regel am selben oder am nächsten Werktag nach Zahlungseingang versandt, außer an Wochenenden und Feiertagen.




Wenn Sie Fragen haben, zögern Sie bitte nicht, uns zu kontaktieren.

Kontaktinformationen:

E-Mail: sales@OBDSTARshop.de
WhatsApp: +86 15223201143

Video

OBDSTAR MarineMaster Key Programming Functions Demo for Sea Doo BRP PWC
