OBDSTAR D800 A+B+C+D Full Configuration Marine Diagnostic Tool – Jet Ski, Outboard, Inboard & Generator

OBDSTAR D800 A+B+C+D  Full Configuration Marine Diagnostic Tool

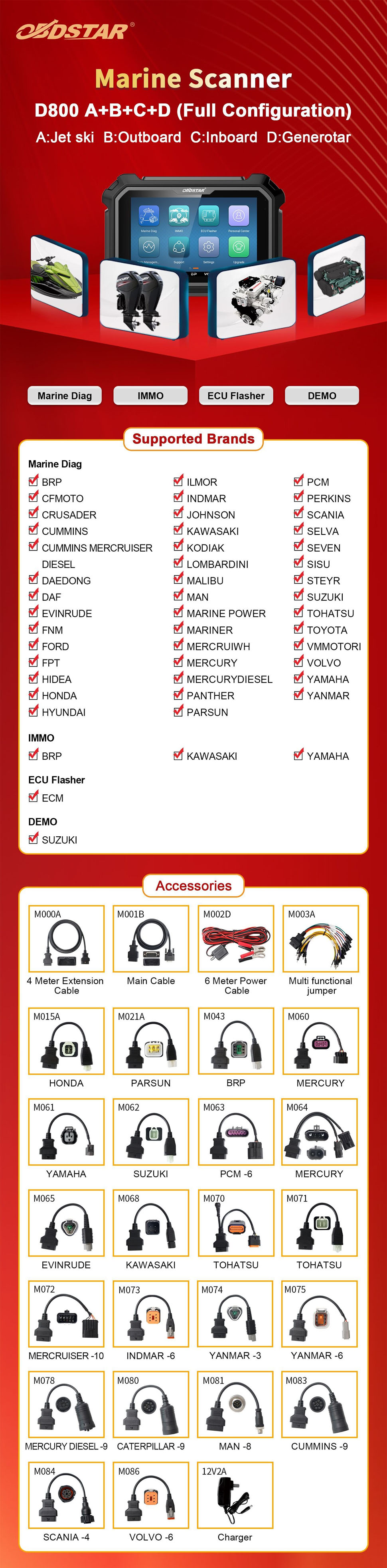

D800 has the following configurations

A: Jet ski    B: Outboard    C: Inboard    D: Generator

D800 A+B: Jet ski, Outboard
D800 C+D: Inboard, Generator
D800 A+B+C+D: Jet ski, Outboard, Inboard, Generator
More details, please check the software configurations in 'Specifications' and the coverages in 'Function Manual'.

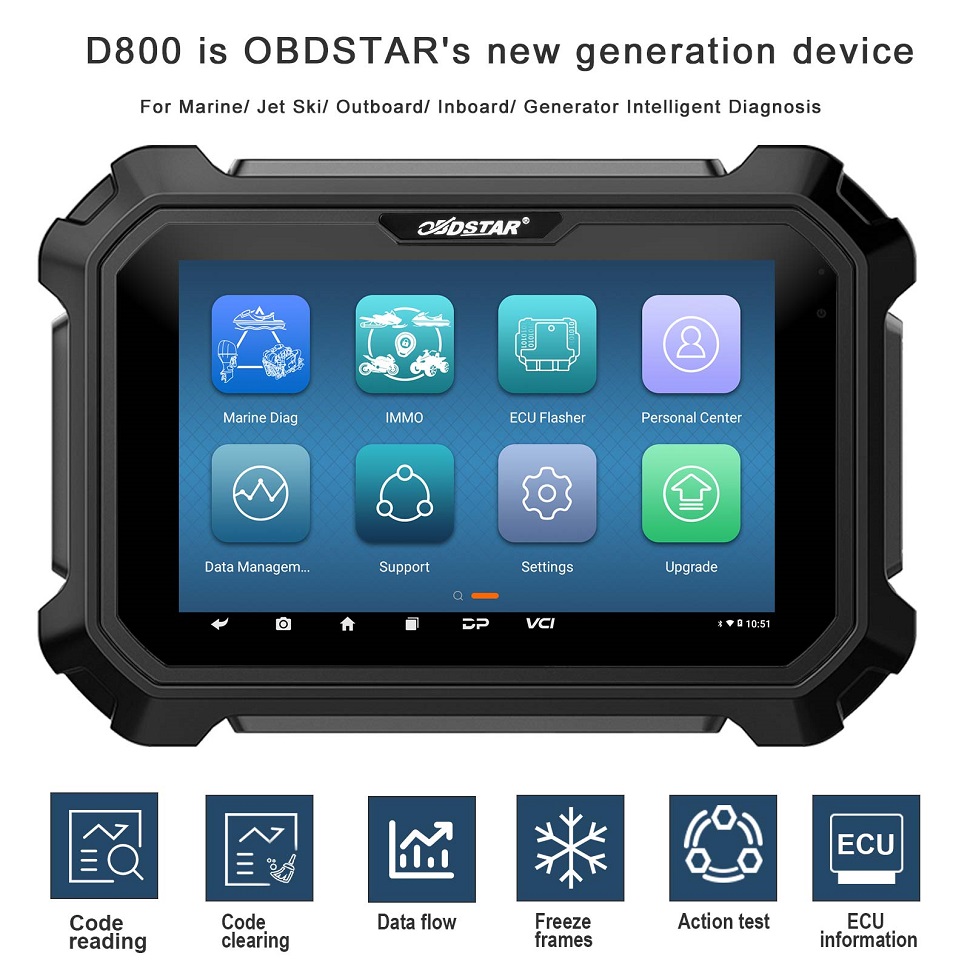

D800 is OBDSTAR's new generation device for marine (jet ski/ outboard/ inboard/ generator) intelligent diagnosis. Based on Samsung Exynos processor, it is equipped with an 8-inch display screen, which is extremely fast and smooth. D800 adopts the latest 3.0 APK platform and has shortcut functions such as auto-identification, intelligent retrieval, and one-click feedback. The equipment, with its fast upgrade performace and built-in help materials, is a good helper for marine maintenance engineers!

Highlights:
Complete Marine Diagnostics: Supports intelligent diagnosis for Jet Ski, Outboard, Inboard, and Generator engines.
Multi-Function Support: Includes Marine Diag, Marine DEMO, Marine IMMO, and ECU Flasher.
Smart & Easy Operation: Auto-identification, intelligent retrieval, wiring diagram queries, real-time recording & playback, plus remote assistance.
Latest 3.0 APK Platform: Ensures fast performance, one-click feedback, and smooth navigation.
Engineer’s Best Helper: Streamlines maintenance tasks and boosts work efficiency.
One-Year Free Updates: Keep your tool up-to-date with the latest features.


Features:
1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletin, manual service function(service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurately and efficiently (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;
3. Various data flow display modes such as text, waveform diagram and instrument diagram allow you to easily analyse faults;
4. Auto Scan, Active Trim Configuraion, Active Trim GPS Configuraion, Auxiliary Joystick Congfiguration, BCM Simulator, Compass Congfiguration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Congfiguration, Steeing Wheel Centering, Syetem Calibration, Torque Ajustment, Trackpad Configuration, Vessel Personality, and other functions.
